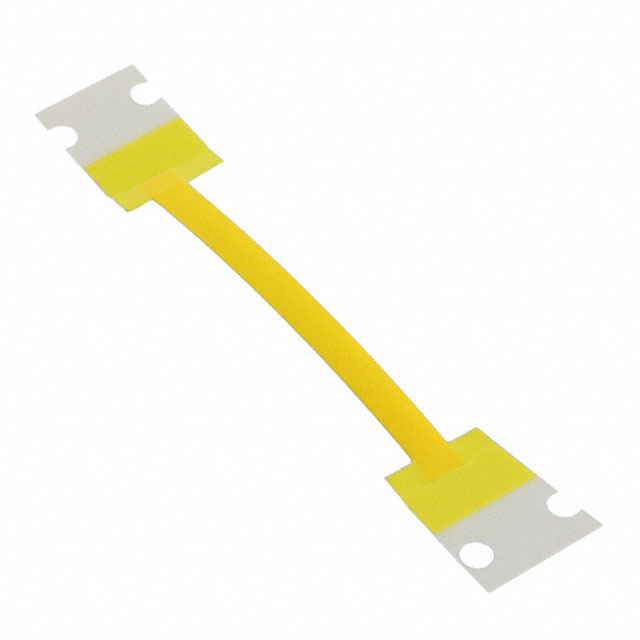

UV-SCE-3/32-2.0-4

Active

TE Connectivity Raychem Cable Protection

ELECTRONIC WIRE ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet IDENTIFCATION PRINTER PRODUCT RIBBON MATRIX +2

UV-SCE-3/32-2.0-4

Active

TE Connectivity Raychem Cable Protection

ELECTRONIC WIRE ROHS

Deep-Dive with AI

DocumentsDatasheet IDENTIFCATION PRINTER PRODUCT RIBBON MATRIX +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UV-SCE-3/32-2.0-4

Color	Yellow
Label Size [Max]	0.08 "
Label Size [Max]	1.9 mm
Label Size [Min]	0.05 in
Label Size [Min]	1.3 mm
Label Size [x]	0.09 "
Label Size [x]	2.4 mm
Label Size [y]	50.8 mm
Label Size [y]	2 in
Label Type	Heat Shrinkable
Material	Polyolefin (PO)
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C

RAYCHEM UV-SCE Series

Part	Label Type	Operating Temperature [Min]	Operating Temperature [Max]	Material	Label Size [Min]	Label Size [Max]	Label Size [y]	Label Size [x]	Color	For Use With/Related Products	Label Size [y]	Label Size [diameter]	Label Size [x]	Label Size [diameter]	Label Size [diameter]	Label Size [Max]	Label Size [x]	Label Size [Min]	Label Size [y]	Label Size	Label Size [Min]	Label Size [Max]	Label Size
TE Connectivity Raychem Cable Protection UV-SCE-1/2-2.0-9	Heat Shrinkable	-55 °C	200 °C	Polyolefin (PO)	0.28 in 7 mm	0.43 in 10.8 mm	2 in	12.7 mm	White
TE Connectivity Raychem Cable Protection UV-SCE-1K-3/4-2.0-4	Heat Shrinkable	-55 °C	200 °C	Polyolefin (PO)			2 in	18.5 mm	Yellow	T200 T2212 T312M T312Mi T3212 T3224 T6112DS TE3112 TE3124 Thermal Transfer Printers	50.8 mm	0.4 " 0.64 "	0.73 "	10.2 mm 16.3 mm
TE Connectivity Raychem Cable Protection UV-SCE-1K-3/8-2.0-4	Heat Shrinkable	-55 °C	200 °C	Polyolefin (PO)			2 in	0.38 in	Yellow	T200 T2212 T312M T312Mi T3212 T3224 T6112DS TE3112 TE3124 Thermal Transfer Printers	50.8 mm		9.5 mm	0.22 in 0.32 in	5.6 mm 8.1 mm
TE Connectivity Raychem Cable Protection UV-SCE-3/32-2.0-4	Heat Shrinkable	-55 °C	200 °C	Polyolefin (PO)	0.05 in	0.08 "	2 in	0.09 "	Yellow							1.9 mm	2.4 mm	1.3 mm	50.8 mm
TE Connectivity Raychem Cable Protection UV-SCE-3/4-2.0-4	Heat Shrinkable	-55 °C	200 °C	Polyolefin (PO)			2 in	18.5 mm	Yellow		50.8 mm	0.4 " 0.64 "	0.73 "	10.2 mm 16.3 mm
TE Connectivity Raychem Cable Protection UV-SCE-1K-1/2-2.0-4	Heat Shrinkable	-55 °C	200 °C	Polyolefin (PO)	0.28 in 7 mm	0.43 in 10.8 mm	2 in	12.7 mm	Yellow	T200 T2212 T312M T312Mi T3212 T3224 T6112DS TE3112 TE3124 Thermal Transfer Printers
TE Connectivity Raychem Cable Protection UV-SCE-1K-1/8-2.0-9	Heat Shrinkable	-55 °C	200 °C	Polyolefin (PO)	1.8 mm	2.7 mm			White	T200 T2212 T312M T312Mi T3212 T3224 T6112DS TE3112 TE3124 Thermal Transfer Printers										3.2 mm 50.8 mm	0.07 "	0.11 in	0.13 in 2 in
TE Connectivity Raychem Cable Protection UV-SCE-3/8-2.0-4	Heat Shrinkable	-55 °C	200 °C	Polyolefin (PO)			2 in	0.38 in	Yellow		50.8 mm		9.5 mm	0.22 in 0.32 in	5.6 mm 8.1 mm
TE Connectivity Raychem Cable Protection UV-SCE-1K-3/16-2.0-4	Heat Shrinkable	-55 °C	200 °C	Polyolefin (PO)	0.1 in 2.5 mm	0.16 " 4.1 mm	2 in	0.19 in 4.8 mm	Yellow	T200 T2212 T312M T312Mi T3212 T3224 T6112DS TE3112 TE3124 Thermal Transfer Printers
TE Connectivity Raychem Cable Protection UV-SCE-1K-1-2.0-9	Heat Shrinkable	-55 °C	200 °C	Polyolefin (PO)					White	T200 T2212 T312M T312Mi T3212 T3224 T6112DS TE3112 TE3124 Thermal Transfer Printers

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1000	$ 1.63
LCSC	Piece	1	$ 1.44

Description

General part information

RAYCHEM UV-SCE Series

Ladder, UV Resistant, 3:1, Yellow, 1 Markers per Sleeve, 50 mm [2 in] Length, 2.4 mm [.094 in] Expanded Inside, RAYCHEM UV-SCE, Printable Tubing
