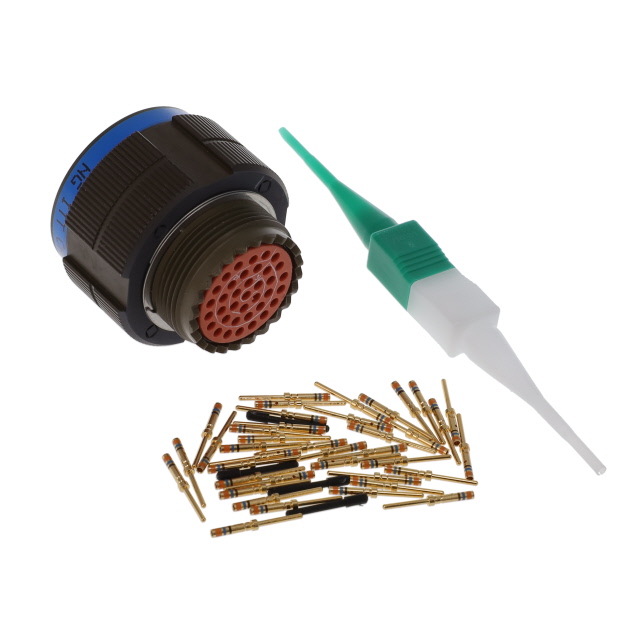

Specification	KJA6T15W35PN

Color	Olive Drab
Connector Type	Male Pins, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	50 µin
Fastening Type	Threaded
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	37 pos
Operating Temperature (Max)	175 °C
Operating Temperature (Min)	-65 °C
Orientation	N (Normal)
Primary Material	Metal
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert (Maximum)	35
Shell Size - Insert (Minimum)	15
Shielding	Shielded
Termination	Crimp

KJA6T Series

Part	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Shell Material	Mounting Type	Shell Finish	Orientation	Termination	Connector Type	Contact Finish - Mating	Primary Material	Contact Finish Thickness - Mating	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Shielding	Fastening Type	Ingress Protection	Color	Type	Insert Material	Contact Type	Features	Contact Shape	Contact Size	Housing Color	Shell Size - Insert Length	Shell Size - Insert Width	Note	Contact Size Options	Position Types
ITT Cannon, LLC KJA6T13F35PN	22	200 °C	-65 °C	Aluminum Alloy	Free Hanging (In-Line)	Electroless Nickel	N (Normal)	Crimp	Male Pins Plug	Gold	Metal	50 µin	35	13	Shielded	Threaded	Environment Resistant
ITT Cannon, LLC KJA6T9W35SN	6	175 °C	-65 °C	Aluminum Alloy	Free Hanging (In-Line)	Olive Drab Cadmium	N (Normal)	Crimp	Female Sockets Plug	Gold	Metal	50 µin	35	9	Shielded	Threaded	Environment Resistant	Olive Drab
ITT Cannon, LLC KJA6T17F6SNL50	6	200 °C	-65 °C	Aluminum Alloy	Free Hanging (In-Line)	Electroless Nickel	N (Normal)		Plug Housing						Shielded	Threaded	Environment Resistant		For Female Sockets	Plastic	Crimp	Coupling Nut	Circular	12	Silver	17 mm	6 mm	Contacts Not Included
ITT Cannon, LLC KJA6T25W8SNL	8	175 °C	-65 °C	Aluminum Alloy	Free Hanging (In-Line)	Cadmium Electroless Nickel	N (Normal)		Plug Housing		Metal				Shielded	Threaded	Environment Resistant		For Female Sockets	Plastic	Crimp	Coupling Nut	Circular		Olive Drab	25	8	Contacts Not Included	8 Coax 8 Twinax Twinax	Coax Twinax
ITT Cannon, LLC KJA6T21W75PEL	4	175 °C	-65 °C	Aluminum Alloy	Free Hanging (In-Line)	Cadmium Electroless Nickel	E		Plug Housing				75	21	Shielded	Threaded	Environment Resistant		For Male Pins	Plastic	Crimp	Coupling Nut	Circular		Olive Drab			Contacts Not Included	8 Twinax	Twinax
ITT Cannon, LLC KJA6T17F35SN	55	200 °C	-65 °C	Aluminum Alloy	Free Hanging (In-Line)	Electroless Nickel	N (Normal)	Crimp	Female Sockets Plug	Gold	Metal	50 µin	35	17	Shielded	Threaded	Environment Resistant
ITT Cannon, LLC KJA6T21F35PNL50	79	200 °C	-65 °C	Aluminum Alloy	Free Hanging (In-Line)	Electroless Nickel	N (Normal)		Plug Housing				35	21	Shielded	Threaded	Environment Resistant		For Male Pins	Plastic	Crimp	Coupling Nut	Circular		Silver			Contacts Not Included	22D
ITT Cannon, LLC KJA6T17F6PNL27	6	200 °C	-65 °C	Aluminum Alloy	Free Hanging (In-Line)	Electroless Nickel	N (Normal)		Plug Housing						Shielded	Threaded	Environment Resistant		For Male Pins	Plastic	Crimp	Coupling Nut	Circular	12	Silver	17 mm	6 mm	Contacts Not Included
ITT Cannon, LLC KJA6T21W35SN	79	175 °C	-65 °C	Aluminum Alloy	Free Hanging (In-Line)	Olive Drab Cadmium	N (Normal)	Crimp	Female Sockets Plug	Gold	Metal	50 µin	35	21	Shielded	Threaded	Environment Resistant	Olive Drab
ITT Cannon, LLC KJA6T25F35PN	128	200 °C	-65 °C	Aluminum Alloy	Free Hanging (In-Line)	Electroless Nickel	N (Normal)	Crimp	Male Pins Plug	Gold	Metal	50 µin	35	25	Shielded	Threaded	Environment Resistant
