TP-DCDC-1256G-VHP

Obsolete

Tycon Systems Inc.

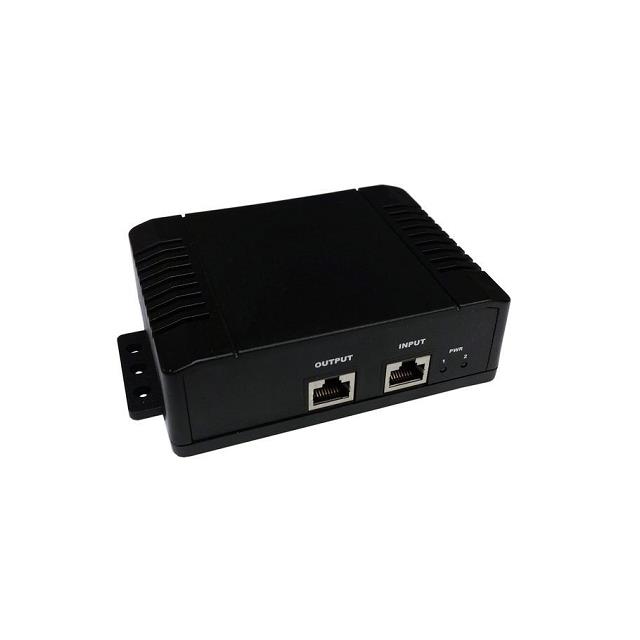

DC/DC CONVERTER 56V 70W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TP-DCDC-1256G-VHP

Obsolete

Tycon Systems Inc.

DC/DC CONVERTER 56V 70W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TP-DCDC-1256G-VHP

Approval Agency	FCC, TUV
Efficiency	80 %
Mounting Type	Chassis Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	4.6 "
Size / Dimension [x]	116.8 mm
Size / Dimension [y]	3.5 in
Size / Dimension [y]	88.9 mm
Size / Dimension [z]	1.57 "
Size / Dimension [z]	39.9 mm

TP-DCDC Series

Part	Input Connector	Efficiency	Mounting Type	Data Rate	Standard Number	Number of Ports	Type	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output	Output Connector	Voltage - Output	Compliance	Power (Watts) - Per Port	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input	Note	Data Rate [Min]	Data Rate [Max]
Tycon Systems Inc. TP-DCDC-1248G-HP	RJ45 (Data Power)	75 %	Chassis Mount	10 Mbps 100 Mbps 1000 Mbps	60950-1 62368-1	1 2	Passive Injector	10 V	15 V	CSA FCC FCC TUV TUV	-30 ░C	60 °C	900 mA	RJ45 (Data Power)	56 V	IEEE802.3af IEEE802.3at	50 W	OCP OVP SCP	124.5 mm	76.2 mm	38.1 mm	1.5 "	4.9 in	3 "
Tycon Systems Inc. TP-DCDC-2448GD-HP	RJ45 (Data Power)	75 %	Chassis Mount	10 Mbps 100 Mbps 1000 Mbps	60950-1	2	Passive Injector	18 V	36 V	CSA FCC TUV	-30 ░C	60 °C	625 MA	RJ45 (Data Power)	56 V	IEEE802.3af IEEE802.3at	35 W	OCP OVP SCP	124.5 mm	76.2 mm	38.1 mm	1.5 "	4.9 in	3 "
Tycon Systems Inc. TP-DCDC-4856GD-VHP		80 %	Chassis Mount							FCC TUV	-30 ░C	60 °C							124.5 mm	76.2 mm	38.1 mm	1.5 "	4.9 in	3 "
Tycon Systems Inc. TP-DCDC-1224-HP	RJ45 (Data Power)	75 %	Chassis Mount		60950-1	2	Passive Injector	10 V	15 V	CSA FCC TUV	-30 ░C	60 °C	1.46 A	RJ45 (Data Power)		IEEE802.3at	35 W	OCP OVP SCP	124.5 mm	76.2 mm	38.1 mm	1.5 "	4.9 in	3 "
Tycon Systems Inc. TP-DCDC-4848GD-HP		75 %	Chassis Mount							FCC TUV	-30 ░C	60 °C							124.5 mm	76.2 mm	38.1 mm	1.5 "	4.9 in	3 "
Tycon Systems Inc. TP-DCDC-1248GD-HP	RJ45 (Data Power)	75 %	Chassis Mount	10 Mbps 100 Mbps 1000 Mbps	60950-1	2	Passive Injector	10 V	15 V	CSA FCC TUV	-30 ░C	60 °C		RJ45 (Data Power)	56 V	IEEE802.3af IEEE802.3at	35 W	OCP OVP SCP	125 mm			1.5 "	4.92 in	2.95 in	75 mm	38 mm
Tycon Systems Inc. TP-DCDC-1248GD-M		75 %	Chassis Mount							FCC TUV	-30 ░C	60 °C							86.4 mm			1.4 "	3.4 "	3 "	76.2 mm	35.6 mm
Tycon Systems Inc. TP-DCDC-2USB-48	RJ45 (Data Power)	72 %	Chassis Mount			1	Passive Injector				-30 ░C	50 °C	250 mA	USB (Power)	48 V			OCP OVP SCP	86.4 mm			1.4 "	3.4 "	3 "	76.2 mm	35.6 mm	5 VDC	AC Power Cord Included	10 Mbps	100 Mbps
Tycon Systems Inc. TP-DCDC-1256G-VHP		80 %	Chassis Mount							FCC TUV	-40 °C	70 °C							116.8 mm	88.9 mm	39.9 mm	1.57 "	4.6 "	3.5 in
Tycon Systems Inc. TP-DCDC-2424GR-VHP		85 %	Chassis Mount							FCC TUV	-40 °C	70 °C							124.5 mm	76.2 mm	38.1 mm	1.5 "	4.9 in	3 "
