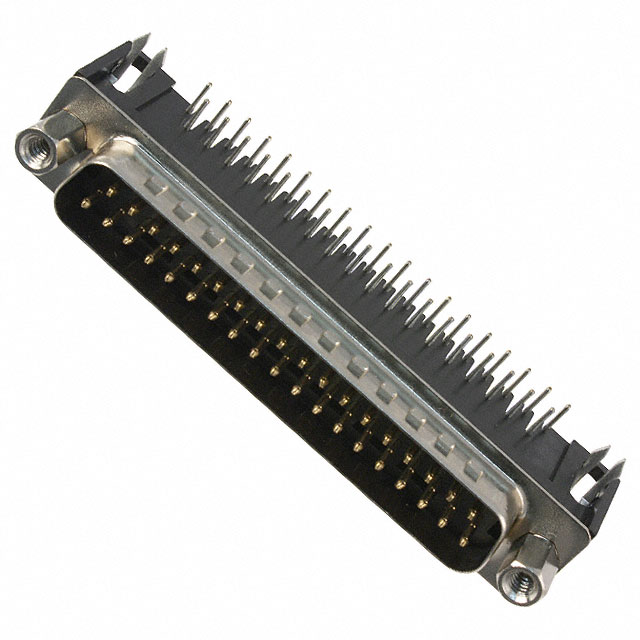

10090097-P374VLF

Obsolete

Amphenol ICC (FCI)

CONN D-SUB PLUG 37POS R/A SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

10090097-P374VLF

Obsolete

Amphenol ICC (FCI)

CONN D-SUB PLUG 37POS R/A SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10090097-P374VLF

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents, Mounting Brackets, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Steel, Tin-Nickel Plated
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder
Voltage Rating	250 VDC

10090097 Series

Part	Connector Style	Material Flammability Rating	Color	Contact Material	Number of Rows	Flange Feature	Shell Size, Connector Layout	Contact Type	Connector Type	Backset Spacing	Backset Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Voltage Rating	Contact Finish	Mounting Type	Contact Finish Thickness	Current Rating (Amps)	Number of Positions	Termination	Features	Shell Material, Finish	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout
Amphenol ICC (FCI) 10090097-P374XLF	D-Sub	UL94 V-0	Black	Copper Alloy	2	4-40 Board Side	4 (DC C)	Signal	Male Pins Plug	8.08 mm	0.318 "	105 ░C	-55 °C	Thermoplastic Glass Filled	250 VDC	Gold	Board Edge Right Angle Through Hole	Flash	5 A	37	Solder	Board Lock Grounding Indents Mounting Brackets	Steel Tin-Nickel Plated
Amphenol ICC (FCI) 10090097-P254VLF	D-Sub	UL94 V-0	Black	Copper Alloy	2	Female Screwlock (4-40) Mating Side		Signal	Male Pins Plug	8.08 mm	0.318 "	105 ░C	-55 °C	Thermoplastic Glass Filled	250 VDC	Gold	Board Edge Right Angle Through Hole	Flash	5 A		Solder	Board Lock Grounding Indents Mounting Brackets	Steel Tin-Nickel Plated	B DB	3
Amphenol ICC (FCI) 10090097-P374VLF	D-Sub	UL94 V-0	Black	Copper Alloy	2	Female Screwlock (4-40) Mating Side	4 (DC C)	Signal	Male Pins Plug	8.08 mm	0.318 "	105 ░C	-55 °C	Thermoplastic Glass Filled	250 VDC	Gold	Board Edge Right Angle Through Hole	Flash	5 A	37	Solder	Board Lock Grounding Indents Mounting Brackets	Steel Tin-Nickel Plated
Amphenol ICC (FCI) 10090097-P154VLF	D-Sub	UL94 V-0	Black	Copper Alloy	2	Female Screwlock (4-40) Mating Side		Signal	Male Pins Plug	8.08 mm	0.318 "	105 ░C	-55 °C	Thermoplastic Glass Filled	250 VDC	Gold	Board Edge Right Angle Through Hole	Flash	5 A	15	Solder	Board Lock Grounding Indents Mounting Brackets	Steel Tin-Nickel Plated			2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

10090097 Series

37 Position D-Sub Plug, Male Pins Connector
