3135-22-1-0500-006-1-TS

Unknown

CnC Tech, LLC

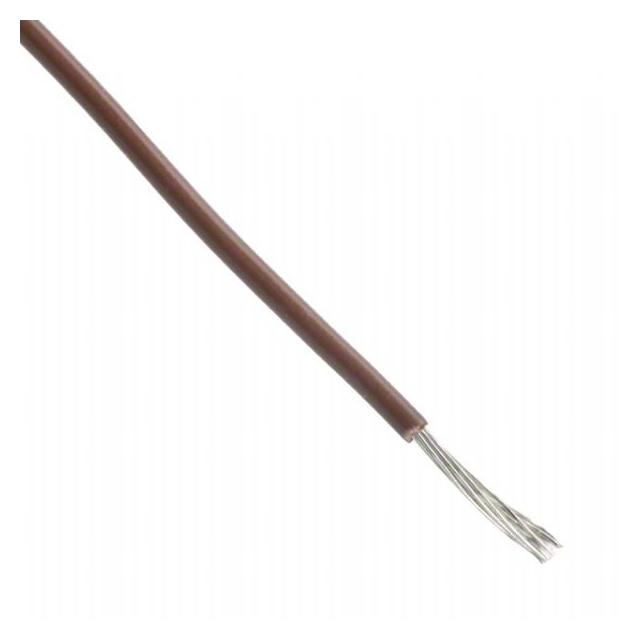

HOOK-UP STRND 22AWG BRN 50'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3135-16-1-0500-0XX-1-TS Datasheet Before 22/03

3135-22-1-0500-006-1-TS

Unknown

CnC Tech, LLC

HOOK-UP STRND 22AWG BRN 50'

Deep-Dive with AI

DocumentsDatasheet 3135-16-1-0500-0XX-1-TS Datasheet Before 22/03

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3135-22-1-0500-006-1-TS

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	0.0063 "
Conductor Strand [custom]	17
Features	Oil Resistant, High Temperature
Jacket (Insulation) Diameter [diameter]	0.091 "
Jacket (Insulation) Diameter [diameter]	2.31 mm
Jacket (Insulation) Material	Silicone Rubber
Jacket (Insulation) Thickness	0.76 mm
Jacket (Insulation) Thickness	0.762 mm
Jacket Color	Brown
Length	15.24 m
Length [x]	25 ft, 500 ', 50 ft
Length [x]	7.62 m, 152.4 m
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 3135
Voltage	600 V
Wire Gauge	22 AWG

3135-22 Series

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Jacket Color	Jacket (Insulation) Material	Length [x]	Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Cable Type	Length	Length	Features	Spool Size	Spool Size
CnC Tech, LLC 3135-22-1-0500-003-1-TS	0.091 "	2.31 mm	Copper Tinned	Yellow	Silicone Rubber	7.62 m 30.5 m 152.4 m	25 ft 100 ft 500 '	150 °C	-30 ░C	22 AWG	0.76 mm	0.762 mm	600 V	0.0063 "	17	UL Style 3135	Hook-Up	3000 "	76.2 m	High Temperature Oil Resistant
CnC Tech, LLC 3135-22-1-0500-001-1-TS	0.091 "	2.31 mm	Copper Tinned	Black	Silicone Rubber	7.62 m 30.5 m 152.4 m	25 ft 50 ft 100 ft 500 '	150 °C	-30 ░C	22 AWG	0.76 mm	0.762 mm	600 V	0.0063 "	17	UL Style 3135	Hook-Up	3000 "	15.24 m 76.2 m	High Temperature Oil Resistant
CnC Tech, LLC 3135-22-1-0500-008-1-TS	0.091 "	2.31 mm	Copper Tinned	Orange	Silicone Rubber	7.62 m 30.5 m 152.4 m	25 ft 50 ft 100 ft 500 '	150 °C	-30 ░C	22 AWG	0.76 mm	0.762 mm	600 V	0.0063 "	17	UL Style 3135	Hook-Up	3000 "	15.24 m 76.2 m	High Temperature Oil Resistant
CnC Tech, LLC 3135-22-1-0500-006-1-TS	0.091 "	2.31 mm	Copper Tinned	Brown	Silicone Rubber	7.62 m 152.4 m	25 ft 50 ft 500 '	150 °C	-30 ░C	22 AWG	0.76 mm	0.762 mm	600 V	0.0063 "	17	UL Style 3135	Hook-Up		15.24 m	High Temperature Oil Resistant
CnC Tech, LLC 3135-22-1-0500-004-1-TS	0.091 "	2.31 mm	Copper Tinned	Red	Silicone Rubber	7.62 m 30.5 m 152.4 m	25 ft 50 ft 100 ft 500 '	150 °C	-30 ░C	22 AWG	0.76 mm	0.762 mm	600 V	0.0063 "	17	UL Style 3135	Hook-Up	3000 "	15.24 m 76.2 m	High Temperature Oil Resistant
CnC Tech, LLC 3135-22-1-0500-010-1-TS	0.091 "	2.31 mm	Copper Tinned	Violet	Silicone Rubber	30.5 m	50 ft 100 ft	150 °C	-30 ░C	22 AWG	0.76 mm	0.762 mm	600 V	0.0063 "	17	UL Style 3135	Hook-Up		15.24 m	High Temperature Oil Resistant
CnC Tech, LLC 3135-22-1-0500-002-1-TS	0.091 "	2.31 mm	Copper Tinned		Silicone Rubber	7.62 m 30.5 m 152.4 m	25 ft 50 ft 100 ft 500 '	150 °C	-30 ░C	22 AWG	0.76 mm	0.762 mm	600 V	0.0063 "	17	UL Style 3135	Hook-Up	3000 "	15.24 m 76.2 m	High Temperature Oil Resistant
CnC Tech, LLC 3135-22-1-0500-007-1-TS	0.091 "	2.31 mm	Copper Tinned	Green	Silicone Rubber	7.62 m 30.5 m 152.4 m	25 ft 50 ft 100 ft 500 '	150 °C	-30 ░C	22 AWG	0.76 mm	0.762 mm	600 V	0.0063 "	17	UL Style 3135	Hook-Up	3000 "	15.24 m 76.2 m	High Temperature Oil Resistant
CnC Tech, LLC 3135-22-1-0500-011-1-TS	0.091 "	2.31 mm	Copper Tinned	Green Yellow	Silicone Rubber	7.62 m 30.5 m 152.4 m	25 ft 50 ft 100 ft 500 '	150 °C	-30 ░C	22 AWG	0.76 mm	0.762 mm	600 V	0.0063 "	17	UL Style 3135	Hook-Up		15.24 m	High Temperature Oil Resistant	500 '	152.4 m
