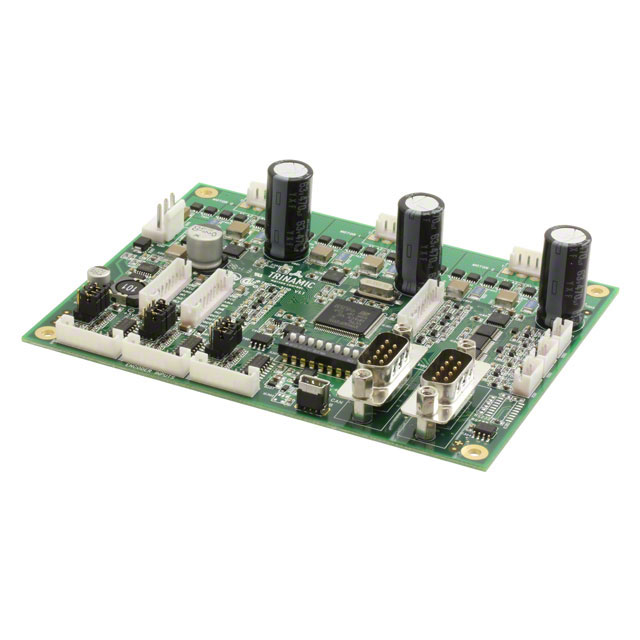

TMCM-3110-CANOPEN
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER 2.8A 9-52.8V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMCM-3110-CANOPEN
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER 2.8A 9-52.8V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMCM-3110-CANOPEN | TMCM-3110 Series |
|---|---|---|
| Control / Drive Type | Bipolar, Stepper | Bipolar, Stepper |
| Current - Output | 2.8 A | 2.8 A |
| Interface | CAN, USB, RS-485 | CAN, USB, RS-485 |
| Motor Type | Stepper | Stepper |
| Mounting Type | Chassis Mount | Chassis Mount |
| Number of Motors | 3 | 3 |
| Operating Temperature [Max] | 40 °C | 40 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Type | Board | Board |
| Voltage - Load [Max] | 52.8 V | 52.8 V |
| Voltage - Load [Min] | 9 V | 9 V |
| Voltage - Supply [Max] | 48 V | 48 V |
| Voltage - Supply [Min] | 24 V | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 332.15 | |
TMCM-3110 Series
STEPPER DRIVER 2.8A 9-52.8V
| Part | Type | Number of Motors | Voltage - Load [Min] | Voltage - Load [Max] | Voltage - Supply [Max] | Voltage - Supply [Min] | Current - Output | Interface | Control / Drive Type | Motor Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMCM-3110-CANOPEN | Board | 3 | 9 V | 52.8 V | 48 V | 24 V | 2.8 A | CAN, RS-485, USB | Bipolar, Stepper | Stepper | Chassis Mount | -30 ░C | 40 °C |
Analog Devices Inc./Maxim Integrated TMCM-3110-TMCL | Board | 3 | 9 V | 52.8 V | 48 V | 24 V | 2.8 A | RS-485, USB | Bipolar, Stepper | Stepper | Chassis Mount | -30 ░C | 40 °C |
Description
General part information
TMCM-3110 Series
Stepper, Bipolar 24 ~ 48VDC Supply 2.8A 9 ~ 52.8V Load
