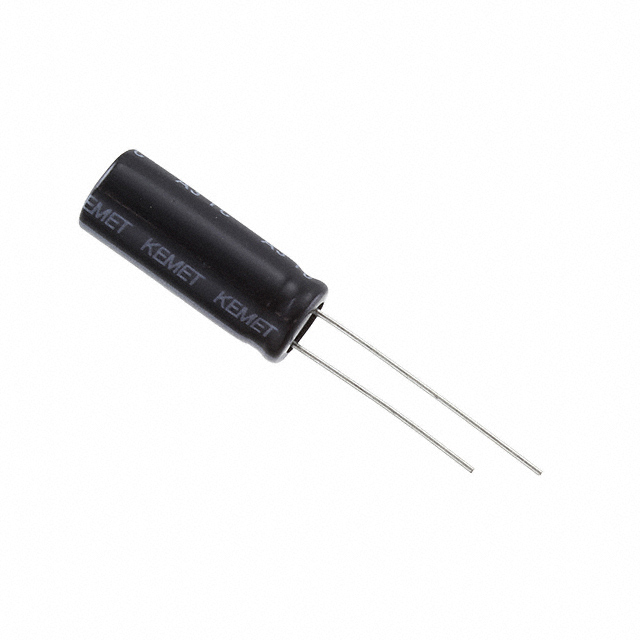

ETA128M6R3AG6AA

Active

KEMET

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID,

Search across all available documentation for this part.

Active

KEMET

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID,

Technical Specifications

Parameters and characteristics for this part

Specification	ETA128M6R3AG6AA

Applications	General Purpose
Capacitance	1.2 mF
ESR (Equivalent Series Resistance)	69 mOhm
Height - Seated (Max) [Max] [z]	22 mm
Height - Seated (Max) [Max] [z]	0.866 in
Impedance	69 mOhms
Lead Spacing	3.5 mm
Lead Spacing	0.138 in
Lifetime @ Temp.	6000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	1.05 A
Ripple Current @ Low Frequency	630 mA
Size / Dimension [diameter]	0.315 "
Size / Dimension [diameter]	8 mm
Tolerance	20 %
Voltage - Rated	6.3 V

Part	Ripple Current @ High Frequency	Applications	Impedance	Polarization	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Lead Spacing	Lead Spacing	Package / Case	Voltage - Rated	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ Low Frequency
KEMET ETA128M6R3AG6AA	1.05 A	General Purpose	69 mOhms	Polar	22 mm	0.866 in	Through Hole	3.5 mm	0.138 in	Radial Can	6.3 V	20 %	-40 °C	105 ░C	1.2 mF	69 mOhm	6000 Hrs	0.315 "	8 mm	630 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	8000	$ 0.11
Newark	Each	2500	$ 0.12

General part information

1200 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can 69mOhm @ 100kHz 6000 Hrs @ 105°C
