141-12SMR+

Active

MINI-CIRCUITS

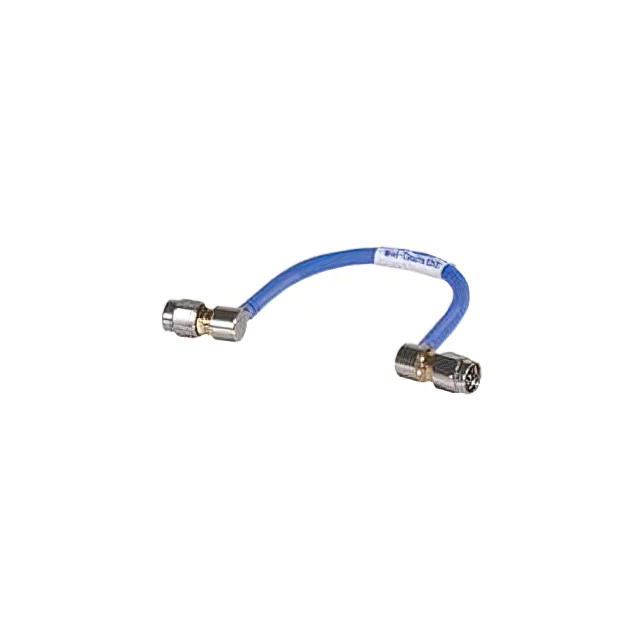

CBL ASSY SMA PLUG TO PLUG 12"

Search across all available documentation for this part.

Active

MINI-CIRCUITS

CBL ASSY SMA PLUG TO PLUG 12"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	141-12SMR+	141-12 Series

1st Connector	SMA Plug, Right Angle	SMA Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Contact Gender	Male	Male
2nd Connector	SMA Plug, Right Angle	SMA Plug, Right Angle, SMA Plug, N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male
Cable Type	Hand Formable .141	Hand Formable .141
Color	Blue	Blue
Frequency - Max [Max]	18 GHz	18 GHz
Length	12 "	12 "
Length	304.8 mm	304.8 mm
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Impedance	50 Ohms	50 Ohms
Style	SMA to SMA	SMA to SMA, N-Type to N-Type

CBL ASSY SMA PLUG TO PLUG 12"

Part	Frequency - Max [Max]	Length	Length	1st Connector	2nd Connector	1st Contact Gender	2nd Connector Mounting Type	Overall Impedance	2nd Contact Gender	Cable Type	Color	Style	1st Connector Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]
MINI-CIRCUITS 141-12SMRSM+	18 GHz	12 "	304.8 mm	Right Angle, SMA Plug	SMA Plug, Right Angle	Male	Free Hanging (In-Line)	50 Ohms	Male	Hand Formable .141	Blue	SMA to SMA	Free Hanging (In-Line)	105 ░C	-55 °C
MINI-CIRCUITS 141-12SMR+	18 GHz	12 "	304.8 mm	Right Angle, SMA Plug	SMA Plug, Right Angle	Male	Free Hanging (In-Line)	50 Ohms	Male	Hand Formable .141	Blue	SMA to SMA	Free Hanging (In-Line)	105 ░C	-55 °C
MINI-CIRCUITS 141-12SM+	18 GHz	12 "	304.8 mm	SMA Plug	SMA Plug	Male	Free Hanging (In-Line)	50 Ohms	Male	Hand Formable .141	Blue	SMA to SMA	Free Hanging (In-Line)	105 ░C	-55 °C
MINI-CIRCUITS 141-12NM+	18 GHz	12 "	304.8 mm		N-Type Plug	Male	Free Hanging (In-Line)	50 Ohms	Male	Hand Formable .141	Blue	N-Type to N-Type	Free Hanging (In-Line)	105 ░C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to SMA Hand Formable .141 12.00" (304.80mm)
