1502-Y

Active

Curtis Industries

CONN BARRIER STRIP 2CIRC 0.375"

Search across all available documentation for this part.

Active

Curtis Industries

CONN BARRIER STRIP 2CIRC 0.375"

Technical Specifications

Parameters and characteristics for this part

Specification	1502-Y

Barrier Type	2 Wall (Dual)
Bottom Termination	PC Pin
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole
Number of Circuits	2
Number of Rows	2
Number of Wire Entries	4
Operating Temperature	110 °C
Pitch [x]	9.53 mm
Pitch [x]	0.375 in
Terminal Block Type	Barrier Block
Terminal Screw Material	Steel
Top Termination	Screws
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	10 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

CONN BARRIER STRIP 2CIRC 0.375"

Part	Wire Gauge [Max]	Wire Gauge [Min]	Material - Insulation	Terminal Screw Material	Operating Temperature	Mounting Type	Bottom Termination	Current Rating (Amps)	Features	Top Termination	Pitch [x]	Pitch [x]	Number of Circuits	Number of Wire Entries	Terminal Block Type	Barrier Type	Material Flammability Rating	Number of Rows
Curtis Industries 1502-Y	22 AWG	10 AWG	Polyphenylene Oxide (PPO)	Steel	110 °C	Chassis, Panel, Through Hole	PC Pin	20 A	Flange	Screws	9.53 mm	0.375 in	2	4	Barrier Block	2 Wall (Dual)	UL94 V-0	2

General part information

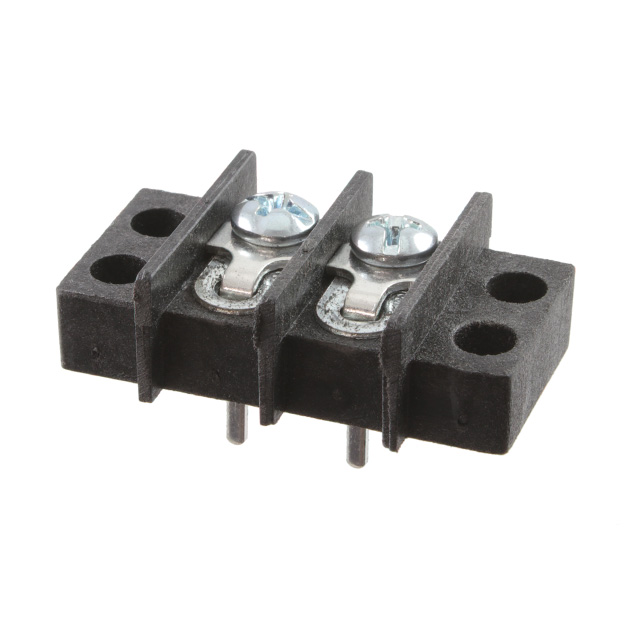

2 Circuit 0.375" (9.53mm) Barrier Block Connector Screws
