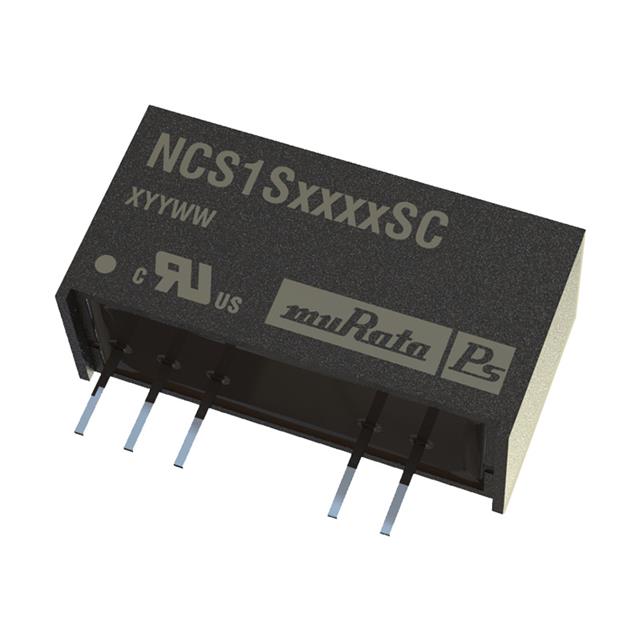

NCS1S1205SC

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 4:1, 1 W, 1 OUTPUT, 5 V, 200 MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

NCS1S1205SC

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 4:1, 1 W, 1 OUTPUT, 5 V, 200 MA

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NCS1S1205SC	NCS1S Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max) [Max]	200 mA	83 - 200 mA
Efficiency	79 %	79 - 83 %
Features	SCP	SCP
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	7-SIP Module, 5 Leads	7-SIP Module, 5 Leads
Size / Dimension [x]	0.86 in	0.86 in
Size / Dimension [x]	21.9 mm	21.9 mm
Size / Dimension [y]	0.32 in	0.32 in
Size / Dimension [y]	8.2 mm	8.2 mm
Size / Dimension [z]	0.45 "	0.45 "
Size / Dimension [z]	11.3 mm	11.3 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	18 V	18 - 36 V
Voltage - Input (Min) [Min]	4.5 V	4.5 - 9 V
Voltage - Isolation	1000 V	1000 V
Voltage - Output 1	5 V	5 - 12 V

NCS1S Series

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 4:1, 1 W, 1 OUTPUT, 5 V, 200 MA

Part	Package / Case	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Applications	Efficiency	Number of Outputs	Voltage - Output 1	Features	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Current - Output (Max) [Max]
Murata Power Solutions Inc. NCS1S1205SC	7-SIP Module, 5 Leads	Isolated Module	0.45 "	0.32 in	11.3 mm	8.2 mm	0.86 in	21.9 mm	Through Hole	ITE (Commercial)	79 %	1	5 V	SCP	18 V	4.5 V	-40 °C	105 ░C	1000 V	200 mA
Murata Power Solutions Inc. NCS1S2412SC	7-SIP Module, 5 Leads	Isolated Module	0.45 "	0.32 in	11.3 mm	8.2 mm	0.86 in	21.9 mm	Through Hole	ITE (Commercial)	83 %	1	12 V	SCP	36 V	9 V	-40 °C	105 ░C	1000 V	83 mA
Murata Power Solutions Inc. NCS1S1212SC	7-SIP Module, 5 Leads	Isolated Module	0.45 "	0.32 in	11.3 mm	8.2 mm	0.86 in	21.9 mm	Through Hole	ITE (Commercial)	79 %	1	12 V	SCP	18 V	4.5 V	-40 °C	105 ░C	1000 V	83 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 8.46
		5	$ 8.42
		10	$ 8.36
		25	$ 8.27
		50	$ 8.06
		100	$ 7.66
		250	$ 7.17
		500	$ 6.68
		1000	$ 6.26
Newark	Each	10	$ 9.20
		25	$ 9.10
		50	$ 8.89
		100	$ 8.48
		250	$ 7.96

Description

General part information

NCS1S Series

The NCS1S1205SC is a 1-output board-mount isolated DC to DC Converter with wide 4:1 input voltage range. The NCS1 series 1W DC/DC converter offers a single output voltage from input voltage ranges of 4.5-18V and 9-36V.
