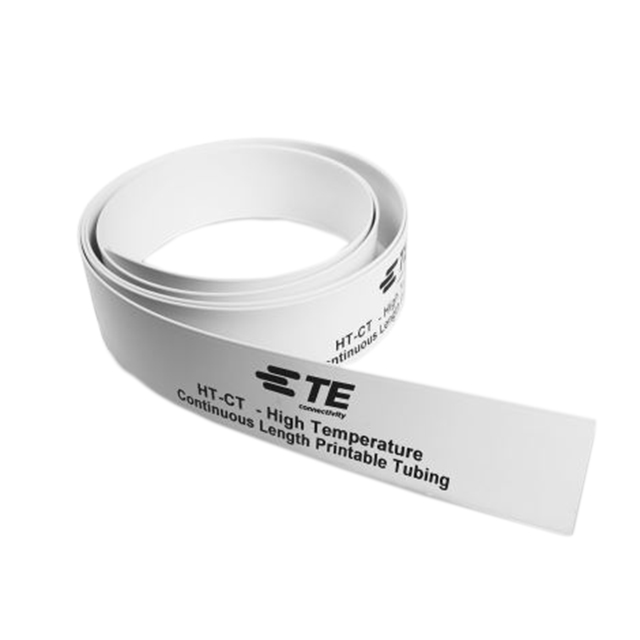

HT-CT-50M-3/16-OUT-0

Active

TE Connectivity Raychem Cable Protection

CONTINUOUS TUBING METER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HT-CT-50M-3/16-OUT-0

Active

TE Connectivity Raychem Cable Protection

CONTINUOUS TUBING METER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HT-CT-50M-3/16-OUT-0

Color	Black
Inner Diameter - Recovered	2.4 mm
Inner Diameter - Recovered	0.094 in
Inner Diameter - Supplied [diameter]	4.75 mm
Inner Diameter - Supplied [diameter]	0.187 in
Length	Enter Number of Meters in Order Quantity
Operating Temperature [Max]	225 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.015 in
Recovered Wall Thickness	0.38 mm
Shelf Life	48 Months
Shelf Life Start	Date of Manufacture
Shrinkage Ratio	2 to 1
Type	Tubing, Flexible

HT-CT-50M Series

Part	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Type	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length	Length	Shelf Life Start	Operating Temperature [Min]	Operating Temperature [Max]	Shelf Life	Shrinkage Ratio	Color	Length	Inner Diameter - Recovered	Inner Diameter - Recovered	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Inner Diameter - Supplied [diameter]
TE Connectivity Raychem Cable Protection HT-CT-50M-1-OUT-0	0.5 in	12.7 mm	0.43 mm	0.017 in	Tubing Flexible	1 in	25.4 mm	164 ft	50 m	Date of Manufacture	-55 °C	225 °C	48 Months	2 to 1	Black
TE Connectivity Raychem Cable Protection HT-CT-50M-1/2-OUT-0	0.25 in	6.35 mm	0.38 mm	0.015 in	Tubing Flexible	0.5 in	12.7 mm			Date of Manufacture	-55 °C	225 °C	48 Months	2 to 1	Black	Enter Number of Meters in Order Quantity
TE Connectivity Raychem Cable Protection HT-CT-50M-3/16-OUT-0			0.38 mm	0.015 in	Tubing Flexible	0.187 in	4.75 mm			Date of Manufacture	-55 °C	225 °C	48 Months	2 to 1	Black	Enter Number of Meters in Order Quantity	2.4 mm	0.094 in
TE Connectivity Raychem Cable Protection HT-CT-50M-1/8-OUT-0	0.063 in	1.6 mm	0.38 mm	0.015 in	Tubing Flexible	0.125 "	3.18 mm			Date of Manufacture	-55 °C	225 °C	48 Months	2 to 1	Black	Enter Number of Meters in Order Quantity
TE Connectivity Raychem Cable Protection HT-CT-50M-1/4-OUT-0	0.125 in		0.38 mm	0.015 in	Tubing Flexible	0.25 in	6.35 mm			Date of Manufacture	-55 °C	225 °C	48 Months	2 to 1	Black	Enter Number of Meters in Order Quantity	3.18 mm
TE Connectivity Raychem Cable Protection HT-CT-50M-1-1/2-OUT-0	0.75 "	19.05 mm	0.43 mm	0.017 in	Tubing Flexible	1.5 in	38.1 mm	164 ft	50 m	Date of Manufacture	-55 °C	135 °C	48 Months	2 to 1	Black
TE Connectivity Raychem Cable Protection HT-CT-50M-3/32-OUT-0	0.031 in	0.79 mm	0.38 mm	0.015 in	Tubing Flexible		0.093 in			Date of Manufacture	-55 °C	225 °C	48 Months		Black	Enter Number of Meters in Order Quantity			1	3	2.36 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 19.84
		5	$ 18.38

Description

General part information

HT-CT-50M Series

Heat Shrink Tubing, Flexible 0.187" (4.75mm) 2 to 1 Black Enter Number of Meters in Order Quantity
