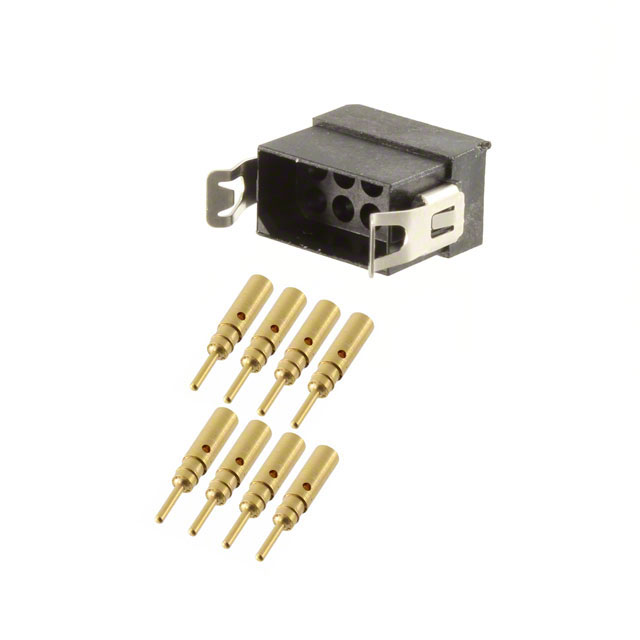

M80-8130805

Active

Harwin Inc.

CONN HEADER 8P CRIMP 22AWG GOLD

Search across all available documentation for this part.

Active

Harwin Inc.

CONN HEADER 8P CRIMP 22AWG GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish Thickness	Contact Finish Thickness	Fastening Type	Contact Type	Number of Rows	Wire Type	Color	Contact Finish	Connector Type	Row Spacing	Row Spacing	Cable Termination	Mounting Type	Number of Positions	Pitch [x]	Pitch [x]	Wire Gauge
Harwin Inc. M80-8130605	10 Áin	0.25 Ám	Latch Holder	Male Pin	2	Discrete	Black	Gold	Header	2 mm	0.079 in	Crimp	Free Hanging (In-Line)	6	0.079 in	2 mm	22 AWG
Harwin Inc. M80-8130805	10 Áin	0.25 Ám	Latch Holder	Male Pin	2	Discrete	Black	Gold	Header	2 mm	0.079 in	Crimp	Free Hanging (In-Line)	8	0.079 in	2 mm	22 AWG
Harwin Inc. M80-8131005	10 Áin	0.25 Ám	Latch Holder	Male Pin	2	Discrete	Black	Gold	Header	2 mm	0.079 in	Crimp	Free Hanging (In-Line)	10	0.079 in	2 mm	22 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Rectangular Header Connector Crimp Gold 22 AWG
