EDAC Inc.

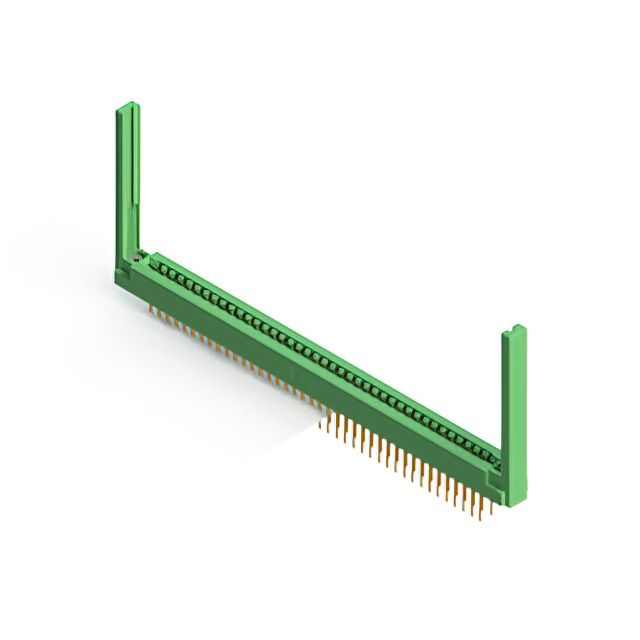

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 80 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

307-080-542-268

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 80 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Description Specifications Series Pricing CAD Documents

Description

General part information

307-080 Series

80 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green

Technical Specifications

Parameters and characteristics for this part

Specification	307-080-542-268

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Guides
Flange Feature	Flush Mount, Top Opening, Threaded Insert, 4-40
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	80, 40
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2 rows

307-080 Series

...

Part	Contact Finish	Gender	Flange Feature Diameter	Flange Feature	Number of Positions	Contact Material	Pitch	Termination	Read Out	Card Thickness (Min)	Card Thickness (Max)	Card Type	Contact Type	Number of Rows	Operating Temperature (Min)	Operating Temperature (Max)	Color	Mounting Type	Termination Rows	Material - Insulation	Features	Contact Finish Thickness
EDAC Inc. 307-080-420-203	Tin	Female	0.116 in	Floating Bobbin Flush Mount	40 80	Copper Alloy	0.156 in	Solder	Dual	0.054 in	0.07 in	Dual Edge Non Specified	Semi Bellows	2	-40 °C	105 °C	Green	Through Hole	2 rows	Polyester Thermoplastic
EDAC Inc. 307-080-422-212	Tin	Female	0.128 in	Flush Mount Side Opening Unthreaded	40 80	Copper Alloy	0.156 in	Solder	Dual	0.054 in	0.07 in	Dual Edge Non Specified	Semi Bellows	2	-40 °C	105 °C	Green	Through Hole	2 rows	Polyester Thermoplastic
EDAC Inc. 307-080-542-268	Gold	Female		4-40 Flush Mount Threaded Insert Top Opening	40 80	Copper Alloy	0.156 in	Wire Wrap	Dual	0.054 in	0.07 in	Dual Edge Non Specified	Semi Bellows	2	-40 °C	105 °C	Green	Through Hole	2 rows	Polyester Thermoplastic	Card Guides	10 Ąin
EDAC Inc. 307-080-540-204	Gold	Female	0.156 in	Flush Mount Top Opening Unthreaded	40 80	Copper Alloy	0.156 in	Wire Wrap	Dual	0.054 in	0.07 in	Dual Edge Non Specified	Semi Bellows	2	-40 °C	105 °C	Green	Through Hole	2 rows	Polyester Thermoplastic		10 Ąin
EDAC Inc. 307-080-524-204	Gold	Female	0.156 in	Flush Mount Top Opening Unthreaded	40 80	Copper Alloy	0.156 in	Solder	Dual	0.054 in	0.07 in	Dual Edge Non Specified	Semi Bellows	2	-40 °C	105 °C	Green	Through Hole	2 rows	Polyester Thermoplastic		10 Ąin
EDAC Inc. 307-080-400-268	Tin	Female		4-40 Flush Mount Threaded Insert Top Opening	40 80	Copper Alloy	0.156 in	Solder Eyelet(s)	Dual	0.054 in	0.07 in	Dual Edge Non Specified	Semi Bellows	2	-40 °C	105 °C	Green	Through Hole	2 rows	Polyester Thermoplastic	Card Guides
EDAC Inc. 307-080-422-278	Tin	Female		4-40 Flush Mount Threaded Insert Top Opening	40 80	Copper Alloy	0.156 in	Solder	Dual	0.054 in	0.07 in	Dual Edge Non Specified	Semi Bellows	2	-40 °C	105 °C	Green	Through Hole	2 rows	Polyester Thermoplastic	Card Guides
EDAC Inc. 307-080-556-202	Gold	Female	0.128 in	Flush Mount Top Opening Unthreaded	40 80	Copper Alloy	0.156 in	Solder	Dual	0.054 in	0.07 in	Dual Edge Non Specified	Semi Bellows	2	-40 °C	105 °C	Green	Board Edge Straddle Mount	2 rows	Polyester Thermoplastic	Card Extender	10 Ąin
EDAC Inc. 307-080-422-204	Tin	Female	0.156 in	Flush Mount Top Opening Unthreaded	40 80	Copper Alloy	0.156 in	Solder	Dual	0.054 in	0.07 in	Dual Edge Non Specified	Semi Bellows	2	-40 °C	105 °C	Green	Through Hole	2 rows	Polyester Thermoplastic
EDAC Inc. 307-080-500-202	Gold	Female	0.128 in	Flush Mount Top Opening Unthreaded	40 80	Copper Alloy	0.156 in	Solder Eyelet(s)	Dual	0.054 in	0.07 in	Dual Edge Non Specified	Semi Bellows	2	-40 °C	105 °C	Green	Through Hole	2 rows	Polyester Thermoplastic		10 Ąin
