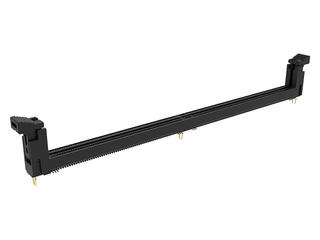

2128254003 - DDR4 DIMM Socket, Vertical Surface Mount, 0.38µm Gold Plating, 288 Circuits, with 4.00mm Fork Lock, Black Housing, Black Latch, without Pick-and-Place Tape

2128254007

Active

DDR4 DIMM SOCKET, VERTICAL SURFACE MOUNT, 0.38ΜM GOLD PLATING, 288 CIRCUITS, WITH 4.00MM FORK LOCK, BLACK HOUSING, BLACK LATCH, WITH 6.10 X 30.00MM PICK-AND-PLACE TAPE

Find alt

Alpha

2128254007

Active

Molex

DDR4 DIMM SOCKET, VERTICAL SURFACE MOUNT, 0.38ΜM GOLD PLATING, 288 CIRCUITS, WITH 4.00MM FORK LOCK, BLACK HOUSING, BLACK LATCH, WITH 6.10 X 30.00MM PICK-AND-PLACE TAPE

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

212825 Series

DDR4 DIMM SOCKET, VERTICAL SURFACE MOUNT, 0.38ΜM GOLD PLATING, 288 CIRCUITS, WITH 4.00MM FORK LOCK, BLACK HOUSING, BLACK LATCH, WITH 6.10 X 30.00MM PICK-AND-PLACE TAPE

Technical Specifications

Parameters and characteristics for this part

Specification	2128254007

Connector Style	DIMM
Contact Finish	Gold
Contact Finish Thickness	15 µin
Features	Board Lock, Latches
Memory Type	DDR4 SDRAM
Mounting Feature	Top, Normal, Standard
Mounting Type	Surface Mount
Number of Positions	288
Standards	MO-309

212825 Series

Part	Number of Positions	Memory Type	Standards	Mounting Type	Connector Style	Contact Finish Thickness	Mounting Feature	Contact Finish	Features	Height	Color	Card Thickness
Molex 2128254008	288	DDR4 SDRAM	MO-309	Surface Mount	DIMM	30 µin	Normal Standard Top	Gold	Board Lock Latches

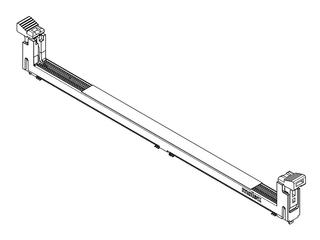

Molex 2128253660	288	DDR4 SDRAM	MO-309	Surface Mount	DIMM	15 µin	Normal Standard Top	Gold	Latches	0.571 in	Blue	0.055 in
Molex 2128253656	288	DDR4 SDRAM	MO-309	Surface Mount	DIMM	15 µin	Normal Standard Top	Gold	Latches	0.571 in	Blue	0.055 in
Molex 2128252502	288	DDR4 SDRAM	MO-309	Surface Mount	DIMM	30 µin	Normal Standard Top	Gold	Latches	0.571 in	Black	0.055 in
Molex 2128252652	288	DDR4 SDRAM	MO-309	Surface Mount	DIMM	15 µin	Normal Standard Top	Gold	Latches	0.571 in	Black	0.055 in
Molex 2128253653	288	DDR4 SDRAM	MO-309	Surface Mount	DIMM	15 µin	Normal Standard Top	Gold	Latches	0.571 in	Black	0.055 in
Molex 2128251658	288	DDR4 SDRAM	MO-309	Surface Mount	DIMM	15 µin	Normal Standard Top	Gold	Latches
Molex 2128253652	288	DDR4 SDRAM	MO-309	Surface Mount	DIMM	15 µin	Normal Standard Top	Gold	Latches	0.571 in	Black	0.055 in
Molex 2128254007	288	DDR4 SDRAM	MO-309	Surface Mount	DIMM	15 µin	Normal Standard Top	Gold	Board Lock Latches
Molex 2128253659	288	DDR4 SDRAM	MO-309	Surface Mount	DIMM	15 µin	Normal Standard Top	Gold	Latches	0.571 in	Black	0.055 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Drawing

Application Specification

Product Specification
