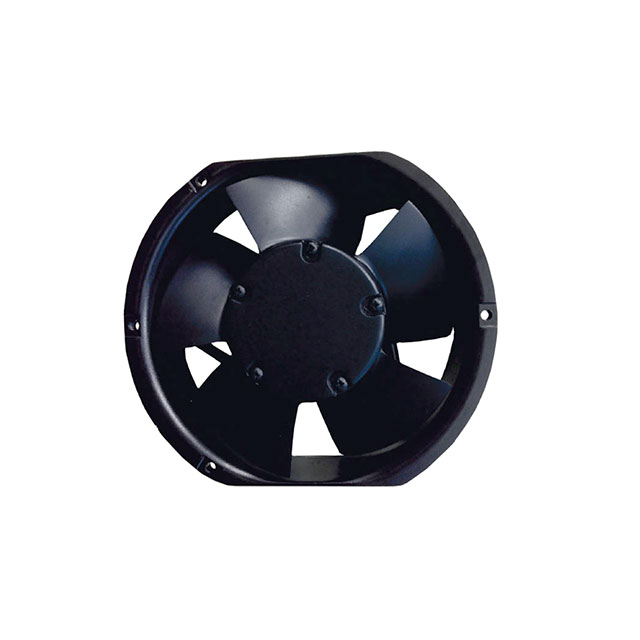

Specification	FDA2-17238NBHT3F-L

Air Flow	240 CFM
Approval Agency	cURus, TUV, CE
Bearing Type	Ball
Current Rating	0.21 A
Fan Type	Tubeaxial
Ingress Protection Description	Water Resistant, Dust Protected
Ingress Protection IP Rating	IP54
Lifetime	100000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	59 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	-4 °F
Power (Watts)	25 W
RPM	3100 RPM
Size / Dimension Height	151 mm
Size / Dimension Length	172 mm
Size / Dimension Shape	Rectangular/Rounded
Static Pressure	0.571 in H2O
Termination	2 Terminals
Termination Count	2
Voltage - Rated	115 V
Weight	1.8 lbs
Width	38.5 mm

FDA2-17238 Series

Part	Weight	Air Flow	Ingress Protection IP Rating	Ingress Protection Description	Noise	Approval Agency	Termination Count	Termination	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	Power (Watts)	Fan Type	Operating Temperature (Min)	Operating Temperature (Max)	Static Pressure	Width	RPM	Voltage - Rated	Bearing Type	Material - Blade	Material - Frame	Current Rating	Lifetime
Qualtek FDA2-17238NBHT3F-L	1.8 lbs	240 CFM	IP54	Dust Protected Water Resistant	59 dB	CE cURus TUV	2	2 Terminals	151 mm	Rectangular/Rounded	172 mm	25 W	Tubeaxial	-4 °F	158 °F	0.571 in H2O	38.5 mm	3100 RPM	115 V	Ball	Plastic	Aluminum	0.21 A	100000 Hrs
