6GG5E-73

Active

Carling Technologies

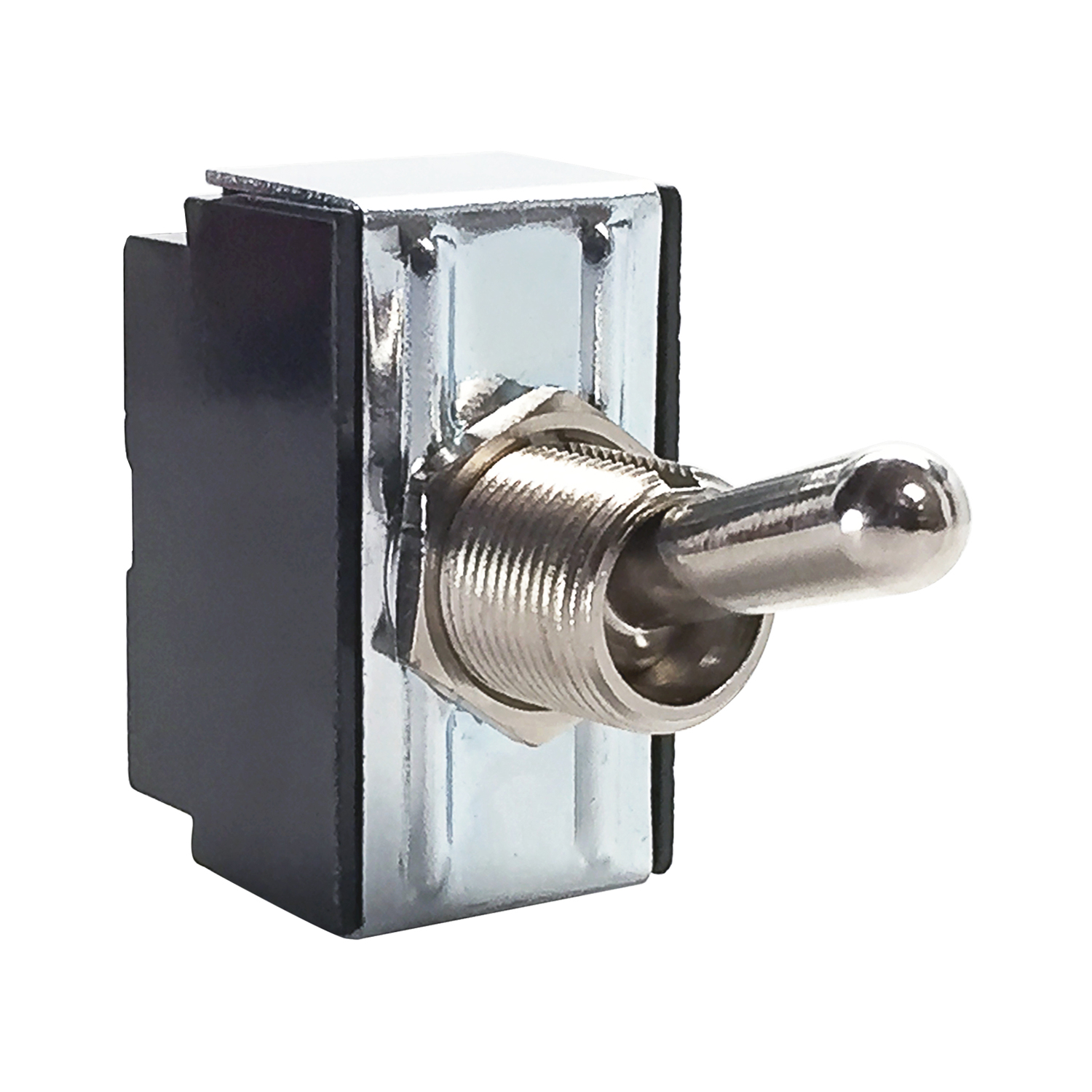

TOGGLE SWITCH, BAT STYLE, (ON)-ON-OFF, (ON)-NONE-OFF, DPDT, NON ILLUMINATED, G SERIES, PANEL MOUNT

Search across all available documentation for this part.

Active

Carling Technologies

TOGGLE SWITCH, BAT STYLE, (ON)-ON-OFF, (ON)-NONE-OFF, DPDT, NON ILLUMINATED, G SERIES, PANEL MOUNT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Panel Mount

Technical documentation and resources

Specification	6GG5E-73	6GG5E Series

Actuator Length [x]	17.45 mm	17.45 mm
Actuator Type	Standard Round	Standard Round, Paddle
Bushing Thread	15/32-32	15/32-32
Circuit	DPDT	DPDT
Current Rating (Amps)	15 A	15 A
Electrical Life	25000 Steps	25000 Steps
Illumination	Non-Illuminated	Non-Illuminated
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	0 °C	0 °C
Panel Cutout Dimensions [diameter]	12.7 mm	12.7 mm
Switch Function	Mom-On-Off	Mom-On-Off
Termination Style	Screw Terminal	Screw Terminal
Voltage Rating - AC	125 V	125 V

Part	Panel Cutout Dimensions [diameter]	Actuator Type	Current Rating (Amps)	Actuator Length [x]	Electrical Life	Switch Function	Voltage Rating - AC	Illumination	Operating Temperature [Max]	Bushing Thread	Termination Style	Circuit
Carling Technologies 6GG5E-78	12.7 mm	Standard Round	15 A	17.45 mm	25000 Steps	Mom-On-Off	125 V	Non-Illuminated	85 °C	15/32-32	Screw Terminal	DPDT
Carling Technologies 6GG5E-78/2 HEX	12.7 mm	Standard Round	15 A	17.45 mm	25000 Steps	Mom-On-Off	125 V	Non-Illuminated	85 °C	15/32-32	Screw Terminal	DPDT
Carling Technologies 6GG5E-73	12.7 mm	Standard Round	15 A	17.45 mm	25000 Steps	Mom-On-Off	125 V	Non-Illuminated	85 °C	15/32-32	Screw Terminal	DPDT
Carling Technologies 6GG5E-D-4B-B	12.7 mm	Paddle	15 A	17.45 mm	25000 Steps	Mom-On-Off	125 V	Non-Illuminated	85 °C	15/32-32	Screw Terminal	DPDT
