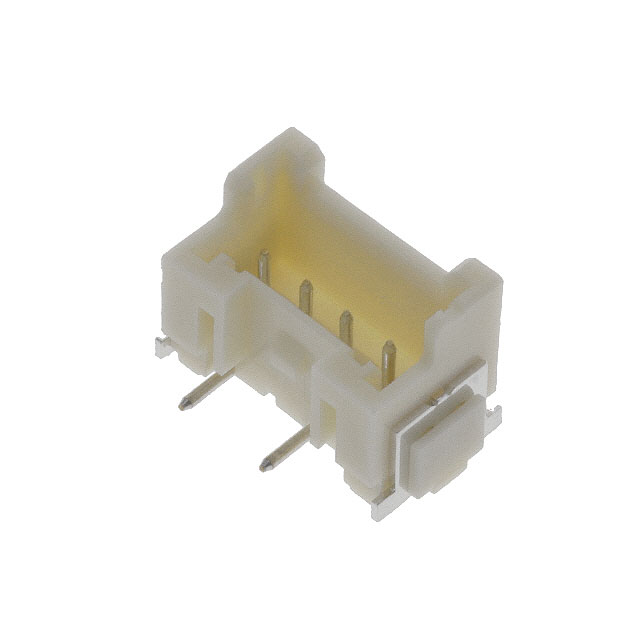

BM04B-XASS-TF

Active

JST Sales America Inc.

CONN HEADER SMD 4POS 2.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD 4POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	BM04B-XASS-TF

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.37 in
Insulation Height	9.4 mm
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	11.9 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Connector Type	Voltage Rating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Finish - Post	Style	Insulation Material	Insulation Color	Material Flammability Rating	Mated Stacking Heights	Fastening Type	Shrouding	Insulation Height	Insulation Height	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Material	Number of Positions	Number of Positions Loaded	Contact Shape	Number of Rows	Mounting Type	Features
JST Sales America Inc. BM04B-XASS-TF	Header	250 VDC	2.5 mm	0.098 in	3 A	Tin	Board to Cable/Wire	Nylon Polyamide (PA)	Natural	UL94 V-0	11.9 mm	Locking Ramp	Shrouded - 4 Wall	0.37 in	9.4 mm	Solder	-25 °C	85 °C	Male Pin	Copper Alloy	4	All	Circular	1	Surface Mount	Solder Retention
