TP-VRHP-4824

Active

Tycon Systems Inc.

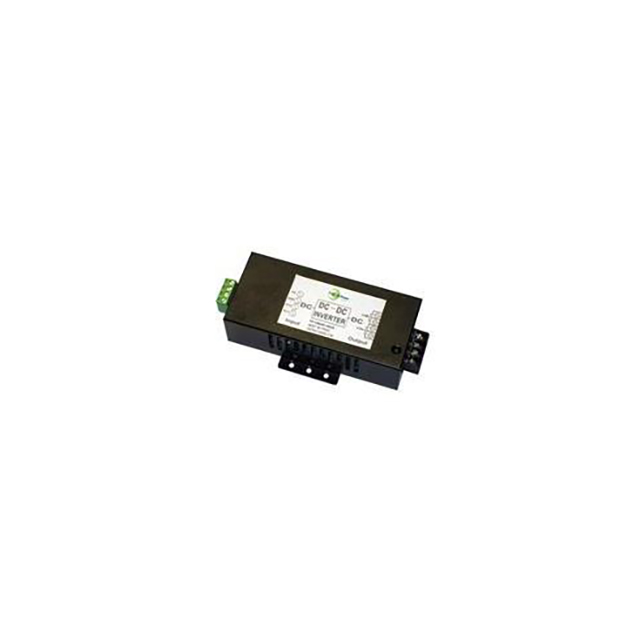

DC/DC CONVERTER 24V 70W

TP-VRHP-4824

Active

Tycon Systems Inc.

DC/DC CONVERTER 24V 70W

Description Specifications Series Pricing CAD Documents

Description

General part information

TP-VR Series

Enclosed DC DC Converter 1 Output 24V 2.9A 72V Input

Technical Specifications

Parameters and characteristics for this part

Specification	TP-VRHP-4824

Applications	ITE (Commercial)
Current - Output (Max)	2.9 A
Efficiency	85 %
Mounting Type	DIN Rail, Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	65 °C
Operating Temperature (Min)	-30 °C
Power (Watts)	70 W
Size / Dimension Height	1.5 in
Size / Dimension Length	5.24 in
Size / Dimension Width	3 in
Type	Enclosed
Voltage - Input (Max)	72 V
Voltage - Input (Min)	36 V
Voltage - Isolation	1500 Vrns
Voltage - Output 1	24 V

TP-VR Series

Part	Power (Watts)	Voltage - Isolation	Applications	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Input (Min)	Voltage - Output 1	Voltage - Input (Max)	Number of Outputs	Current - Output (Max)	Size / Dimension Width	Size / Dimension Length	Size / Dimension Height	Type	Efficiency	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Charge Current - Max	Termination Style	Battery Cell Voltage	Voltage - Nominal	Power - Max	Number of Cells
Tycon Systems Inc. TP-VRHP-1224	70 W	1500 Vrns	ITE (Commercial)	Chassis Mount DIN Rail	65 °C	-30 °C	10 VDC	24 V	15 V	1	2.9 A	3 in	5.24 in	1.5 in	Enclosed	85 %
Tycon Systems Inc. TP-VRHP-4824	70 W	1500 Vrns	ITE (Commercial)	Chassis Mount DIN Rail	65 °C	-30 °C	36 V	24 V	72 V	1	2.9 A	3 in	5.24 in	1.5 in	Enclosed	85 %
Tycon Systems Inc. TP-VRHP-4856	70 W	1500 Vrns	ITE (Commercial)	Chassis Mount DIN Rail	65 °C	-30 °C	36 V	56 V	72 V	1	1.25 A	3 in	5.24 in	1.5 in	Enclosed	85 %
Tycon Systems Inc. TP-VR-2405-USB				Custom	65 °C	-40 °C						1.25 in	2.75 in	1 in	USB In-Vehicle		10 V	32 V	1 A	USB A Receptacle	5 V	5 V	5 VA	1
Tycon Systems Inc. TP-VRHP-2456-250	250 W	1500 Vrns	ITE (Commercial)	Chassis Mount DIN Rail	65 °C	-30 °C	18 V	56 V	36 V	1	4.46 A	3 in 5.9 in	5.24 in 7.4 in	1.5 in 1.7 in	Enclosed	83 % 85 %
Tycon Systems Inc. TP-VRHP-2424	70 W	1500 Vrns	ITE (Commercial)	Chassis Mount DIN Rail	65 °C	-30 °C	18 V	24 V	36 V	1	2.9 A	3 in	5.24 in	1.5 in	Enclosed	85 %
Tycon Systems Inc. TP-VRHP-4856-250	250 W	1500 Vrns	ITE (Commercial)	Chassis Mount DIN Rail	65 °C	-30 °C	36 V	56 V	72 V	1	4.46 A	5.9 in 7.4 in	5.9 in 7.4 in	1.7 in	Enclosed	85 %
Tycon Systems Inc. TP-VR-2405	15 W		ITE (Commercial)	Chassis Mount	65 °C	-40 °C	10 VDC	5 V	32 V	1	3 A	1.25 in	2.75 in	1 in	Enclosed	80 %
Tycon Systems Inc. TP-VRHP-1256	70 W	1500 Vrns	ITE (Commercial)	Chassis Mount DIN Rail	65 °C	-30 °C	10 VDC	56 V	15 V	1	1.25 A	3 in	5.24 in	1.5 in	Enclosed	85 %
Tycon Systems Inc. TP-VR-2412	15 W		ITE (Commercial)	Chassis Mount	65 °C	-40 °C	18 V	12 V	32 V	1	1.25 A	1.25 in	2.75 in	1 in	Enclosed	80 %
