805-43-030-10-012000

Active

Mill-Max Manufacturing Corp.

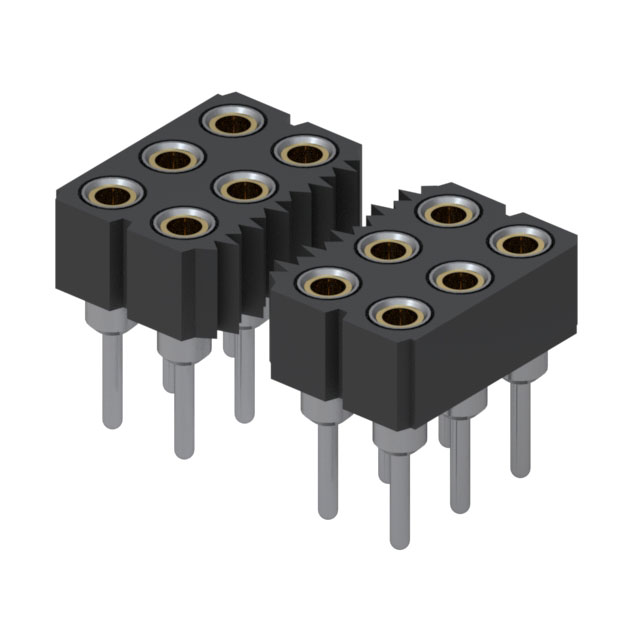

CONN RCPT 30POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

805-43-030-10-012000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 30POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	805-43-030-10-012000

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	4.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.165 in
Insulation Height [z]	4.2 mm
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

805-43 Series

Part	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Mounting Type	Insulation Height [z]	Insulation Height [z]	Pitch - Mating	Pitch - Mating	Contact Material	Contact Finish - Post	Number of Positions Loaded	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Number of Positions	Fastening Type	Number of Rows	Material Flammability Rating	Termination	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Mill-Max Manufacturing Corp. 805-43-045-10-012000	Black	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	3.18 mm	0.125 in	Through Hole	0.165 in	4.2 mm	0.1 in	2.54 mm	Beryllium Copper	Tin	All	Receptacle	30 Áin	0.76 Ám	4.5 A	45	Push-Pull	3	UL94 V-0	Solder	Female Socket	2.54 mm	0.1 in	Gold	200 µin	5.08 µm
Mill-Max Manufacturing Corp. 805-43-030-10-012000	Black	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	3.18 mm	0.125 in	Through Hole	0.165 in	4.2 mm	0.1 in	2.54 mm	Beryllium Copper	Tin	All	Receptacle	30 Áin	0.76 Ám	4.5 A	30	Push-Pull	3	UL94 V-0	Solder	Female Socket	2.54 mm	0.1 in	Gold	200 µin	5.08 µm
Mill-Max Manufacturing Corp. 805-43-051-10-012000	Black	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	3.18 mm	0.125 in	Through Hole	0.165 in	4.2 mm	0.1 in	2.54 mm	Beryllium Copper	Tin	All	Receptacle	30 Áin	0.76 Ám	4.5 A	51	Push-Pull	3	UL94 V-0	Solder	Female Socket	2.54 mm	0.1 in	Gold	200 µin	5.08 µm
Mill-Max Manufacturing Corp. 805-43-015-10-012000	Black	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	3.18 mm	0.125 in	Through Hole	0.165 in	4.2 mm	0.1 in	2.54 mm	Beryllium Copper	Tin	All	Receptacle	30 Áin	0.76 Ám	4.5 A	15	Push-Pull	3	UL94 V-0	Solder	Female Socket	2.54 mm	0.1 in	Gold	200 µin	5.08 µm
Mill-Max Manufacturing Corp. 805-43-027-10-012000	Black	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	3.18 mm	0.125 in	Through Hole	0.165 in	4.2 mm	0.1 in	2.54 mm	Beryllium Copper	Tin	All	Receptacle	30 Áin	0.76 Ám	4.5 A	27	Push-Pull	3	UL94 V-0	Solder	Female Socket	2.54 mm	0.1 in	Gold	200 µin	5.08 µm
Mill-Max Manufacturing Corp. 805-43-024-10-012000	Black	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	3.18 mm	0.125 in	Through Hole	0.165 in	4.2 mm	0.1 in	2.54 mm	Beryllium Copper	Tin	All	Receptacle	30 Áin	0.76 Ám	4.5 A	24	Push-Pull	3	UL94 V-0	Solder	Female Socket	2.54 mm	0.1 in	Gold	200 µin	5.08 µm
Mill-Max Manufacturing Corp. 805-43-042-10-012000	Black	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	3.18 mm	0.125 in	Through Hole	0.165 in	4.2 mm	0.1 in	2.54 mm	Beryllium Copper	Tin	All	Receptacle	30 Áin	0.76 Ám	4.5 A	42	Push-Pull	3	UL94 V-0	Solder	Female Socket	2.54 mm	0.1 in	Gold	200 µin	5.08 µm
Mill-Max Manufacturing Corp. 805-43-078-10-012000	Black	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	3.18 mm	0.125 in	Through Hole	0.165 in	4.2 mm	0.1 in	2.54 mm	Beryllium Copper	Tin	All	Receptacle	30 Áin	0.76 Ám	4.5 A	78	Push-Pull	3	UL94 V-0	Solder	Female Socket	2.54 mm	0.1 in	Gold	200 µin	5.08 µm
Mill-Max Manufacturing Corp. 805-43-012-10-012000	Black	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	3.18 mm	0.125 in	Through Hole	0.165 in	4.2 mm	0.1 in	2.54 mm	Beryllium Copper	Tin	All	Receptacle	30 Áin	0.76 Ám	4.5 A	12	Push-Pull	3	UL94 V-0	Solder	Female Socket	2.54 mm	0.1 in	Gold	200 µin	5.08 µm
Mill-Max Manufacturing Corp. 805-43-096-10-012000	Black	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	3.18 mm	0.125 in	Through Hole	0.165 in	4.2 mm	0.1 in	2.54 mm	Beryllium Copper	Tin	All	Receptacle	30 Áin	0.76 Ám	4.5 A	96	Push-Pull	3	UL94 V-0	Solder	Female Socket	2.54 mm	0.1 in	Gold	200 µin	5.08 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 10.92
		10	$ 8.38
		100	$ 6.53
		500	$ 5.54
		1000	$ 5.19

Description

General part information

805-43 Series

30 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
