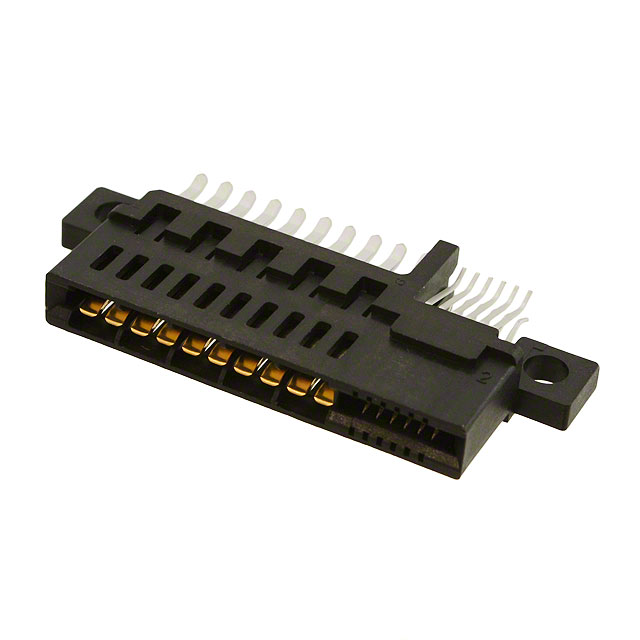

10116809-002LF

Active

Amphenol ICC (FCI)

CONN EDGE DUAL FMALE 32POS

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN EDGE DUAL FMALE 32POS

Technical Specifications

Parameters and characteristics for this part

Specification	10116809-002LF

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	GXT™, Gold or Gold
Contact Material	Copper Alloy
Features	Card Extender
Flange Feature	Side Opening, Unthreaded, Flush Mount
Flange Feature [diameter]	0.146 in
Flange Feature [diameter]	3.7 mm
Gender	Female
Material - Insulation	Thermoplastic
Mounting Type	Board Edge, Straddle Mount
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Read Out	Dual
Termination	Solder

Part	Contact Finish	Contact Material	Features	Read Out	Material - Insulation	Card Type	Card Thickness	Card Thickness	Number of Rows	Gender	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Color	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type
Amphenol ICC (FCI) 10116809-001LF	Gold or Gold GXT™	Copper Alloy	Card Extender	Dual	Thermoplastic	Non Specified - Dual Edge	0.062 in	1.57 mm	2	Female	0.146 in	Flush Mount Side Opening Unthreaded	3.7 mm	Black	Solder	105 ░C	-55 °C	Board Edge Straddle Mount
Amphenol ICC (FCI) 10116809-002LF	Gold or Gold GXT™	Copper Alloy	Card Extender	Dual	Thermoplastic	Non Specified - Dual Edge	0.062 in	1.57 mm	2	Female	0.146 in	Flush Mount Side Opening Unthreaded	3.7 mm	Black	Solder	105 ░C	-55 °C	Board Edge Straddle Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	225	$ 5.99

General part information

32 (12 + 20 Power) Position Female Connector Non Specified - Dual Edge Gold or Gold, GXT™ Black
