45-2925.2000.111

Active

EAO

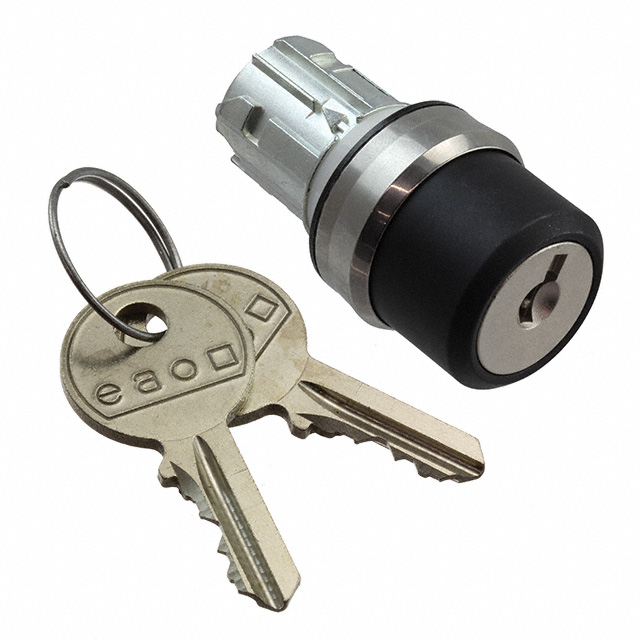

CONFIG SW BODY KEYLOCK NON-ILLUM

Search across all available documentation for this part.

Active

EAO

CONFIG SW BODY KEYLOCK NON-ILLUM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	45-2925.2000.111	45-2925 Series

(Select First, Then Apply Filters) Compatible Series	45, EAO	45, EAO
Actuator Type	Keylock	Keylock
Illumination	Non-Illuminated	Non-Illuminated
Panel Cutout Dimensions	22.3 mm	22.3 mm
Requires	Contact Block(s)	Contact Block(s)
Type	Maintained	Maintained

CONFIG SW BODY KEYLOCK NON-ILLUM

Part	Actuator Type	Type	Panel Cutout Dimensions	Requires	Illumination	(Select First, Then Apply Filters) Compatible Series
EAO 45-2925.3000.111	Keylock	Maintained	22.3 mm	Contact Block(s)	Non-Illuminated	45, EAO
EAO 45-2925.2000.111	Keylock	Maintained	22.3 mm	Contact Block(s)	Non-Illuminated	45, EAO
EAO 45-2925.1000.111	Keylock	Maintained	22.3 mm	Contact Block(s)	Non-Illuminated	45, EAO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Switch Body Keylock Non-Illuminated
