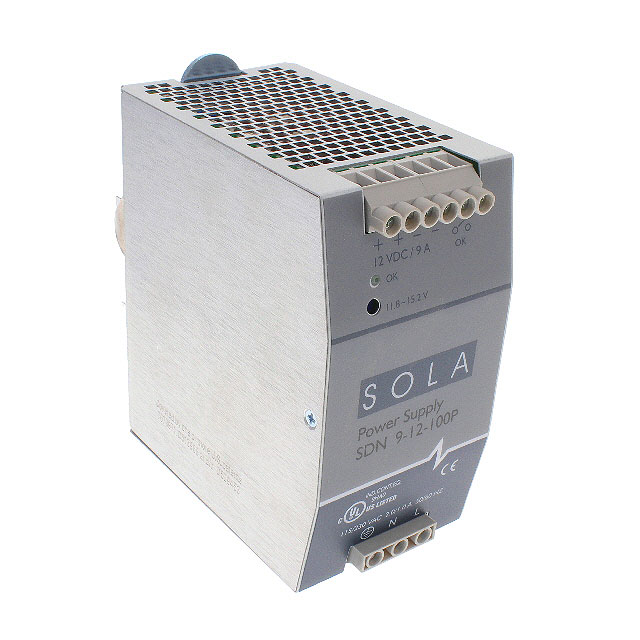

SDN9-12-100P

Active

SolaHD

AC/DC DIN RAIL SUPPLY 12V 108W

Search across all available documentation for this part.

Active

SolaHD

AC/DC DIN RAIL SUPPLY 12V 108W

Technical Specifications

Parameters and characteristics for this part

Specification	SDN9-12-100P

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Max]	132 VAC
AC Voltage - Input [Min]	176 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial), Industrial, Hazardous Locations
Approval Agency	CE, cURus, cULus
DC Voltage - Input (Max) [Max]	375 V
DC Voltage - Input (Min) [Min]	210 V
Efficiency	84 %
Features	Adjustable Output, IP20
Input Type	AC or DC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	108 W
Size / Dimension [x]	4.55 in
Size / Dimension [x]	115.6 mm
Size / Dimension [y]	65 mm
Size / Dimension [y]	2.56 "
Size / Dimension [z]	4.88 "
Size / Dimension [z]	124 mm
Voltage - Output 1	12 V

Part	Applications	DC Voltage - Input (Min) [Min]	Approval Agency	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Input Type	Voltage - Output 1	AC Voltage - Input [Min]	AC Voltage - Input [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Efficiency	Power (Watts)	DC Voltage - Input (Max) [Max]	Features	Operating Temperature [Min]	Operating Temperature [Max]
SolaHD SDN9-12-100P	Hazardous Locations Industrial ITE (Commercial)	210 V	CE cULus cURus	1	65 mm	4.88 "	4.55 in	124 mm	115.6 mm	2.56 "	AC or DC	12 V	176 VAC	264 VAC	85 VAC	132 VAC	84 %	108 W	375 V	Adjustable Output IP20	-10 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 12V 108W

Technical documentation and resources

No documents available
