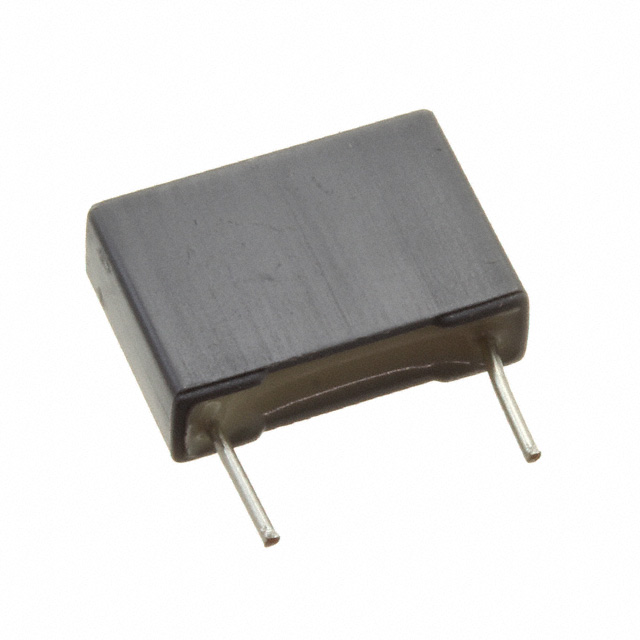

Specification	R60PF2100AA6AJ

Applications	Automotive
Capacitance	10000 pF
Dielectric Material	Metallized - Stacked, Polyester, Polyethylene Terephthalate (PET)
Height - Seated (Max)	0.358 in
Lead Spacing	0.394 in
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension Length	0.512 in
Size / Dimension Width	0.157 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	220 V
Voltage Rating - DC	630 V

R60PF Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Ratings	Voltage Rating - AC	Height - Seated (Max)	Mounting Type	Dielectric Material	Package / Case	Tolerance	Lead Spacing	Termination	Voltage Rating - DC	Size / Dimension Width	Size / Dimension Length	Capacitance	Applications
KEMET R60PF1470AA30J	-55 °C	105 °C	AEC-Q200	220 V	0.358 in	Through Hole	Metallized Polyester Polyethylene Terephthalate (PET)	Radial	5 %	0.394 in	PC Pins	630 V	0.157 in	0.512 in	4700 pF	Automotive
KEMET R60PF2100AA6AJ	-55 °C	105 °C	AEC-Q200	220 V	0.358 in	Through Hole	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	Radial	5 %	0.394 in	PC Pins	630 V	0.157 in	0.512 in	10000 pF	Automotive
KEMET R60PF16804030K	-55 °C	105 °C	AEC-Q200	220 V	0.358 in	Through Hole	Metallized Polyester Polyethylene Terephthalate (PET)	Radial	10 %	0.394 in	PC Pins	630 V	0.157 in	0.512 in	6800 pF	Automotive
KEMET R60PF2100AA6AK	-55 °C	105 °C	AEC-Q200	220 V	0.358 in	Through Hole	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	Radial	10 %	0.394 in	PC Pins	630 V	0.157 in	0.512 in	10000 pF	Automotive
KEMET R60PF14705030K	-55 °C	105 °C	AEC-Q200	220 V	0.358 in	Through Hole	Metallized Polyester Polyethylene Terephthalate (PET)	Radial	10 %	0.394 in	PC Pins	630 V	0.157 in	0.512 in	4700 pF	Automotive
KEMET R60PF21004030K	-55 °C	105 °C	AEC-Q200	220 V	0.358 in	Through Hole	Metallized Polyester Polyethylene Terephthalate (PET)	Radial	10 %	0.394 in	PC Pins	630 V	0.157 in	0.512 in	10000 pF	Automotive
