31-5431-2010

Active

Amphenol RF

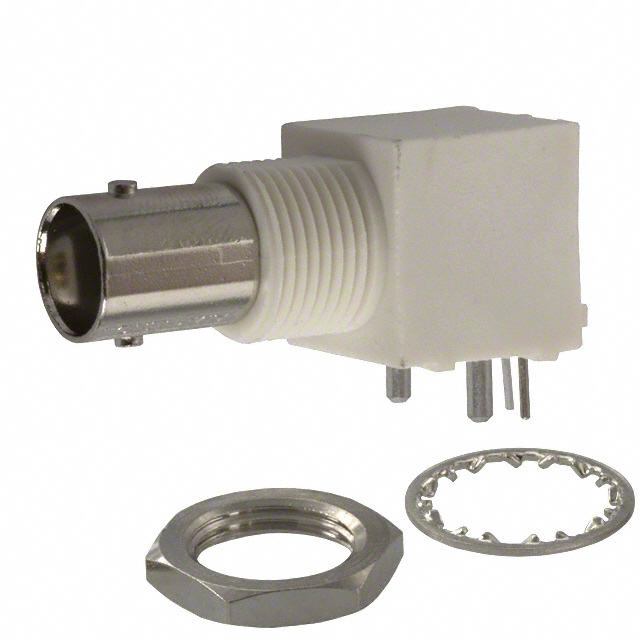

CONN BNC JACK R/A 50 OHM PCB

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC JACK R/A 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	31-5431-2010

Body Finish	Nickel
Body Material	Zinc Die Cast
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polypropylene (PP)
Fastening Type	Bayonet Lock
Features	Isolated, Board Guide
Frequency - Max [Max]	1 GHz
Housing Color	White, Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Housing Color	Dielectric Material	Shield Termination	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Body Material	Number of Ports	Mounting Type	Frequency - Max [Max]	Body Finish	Features	Voltage Rating	Includes	Contact Termination	Fastening Type	Mounting Feature	Center Contact Plating	Center Contact Material	Connector Style	Insertion Loss	Mating Cycles	Connector Type
Amphenol RF 31-5431-2010	Silver White	Polypropylene (PP)	Solder	85 °C	-55 °C	50 Ohms	Zinc Die Cast	1	Panel Mount Right Angle Through Hole	1 GHz	Nickel	Board Guide Isolated	500 V	1 Connector 1 Lockwasher 1 Nut	Solder	Bayonet Lock	Bulkhead - Front Side Nut	Gold	Phosphor Bronze	BNC	0.2 dB	500	Female Socket Jack
Amphenol RF 31-5431	Silver White	Polypropylene (PP)	Solder	85 °C	-55 °C	50 Ohms	Zinc Die Cast	1	Panel Mount Right Angle Through Hole	1 GHz	Nickel	Board Guide Isolated	500 V		Solder	Bayonet Lock	Bulkhead - Front Side Nut	Gold	Phosphor Bronze	BNC	0.2 dB	500	Female Socket Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole, Right Angle Solder
