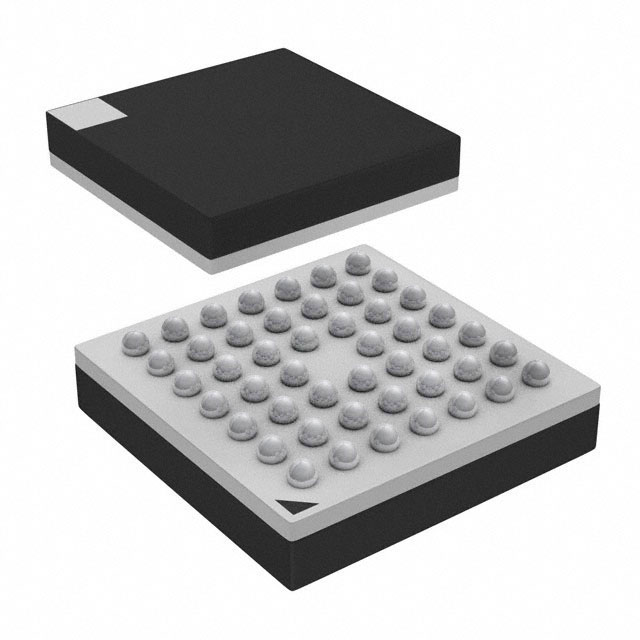

EFM32TG225F16-BGA48T

Unknown

Silicon Labs

IC MCU 32BIT 16KB FLASH 48BGA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsA-00000442 Security Advisory Datasheet +2

EFM32TG225F16-BGA48T

Unknown

Silicon Labs

IC MCU 32BIT 16KB FLASH 48BGA

Deep-Dive with AI

DocumentsA-00000442 Security Advisory Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EFM32TG225F16-BGA48T

Connectivity	I2C, UART/USART, SPI, IrDA, EBI/EMI, SmartCard
Core Processor	ARM® Cortex®-M3
Core Size	32-Bit Single-Core
Data Converters	A/D 4x12b, D/A 1x12b
Mounting Type	Surface Mount
Number of I/O	37
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	48-VFBGA
Peripherals	Brown-out Detect/Reset, DMA, POR, WDT, PWM, I2S
Program Memory Size	16 KB
Program Memory Type	FLASH
RAM Size	4K x 8
Speed	32 MHz
Supplier Device Package	48-BGA (4x4)
Voltage - Supply (Vcc/Vdd) [Max]	3.8 V
Voltage - Supply (Vcc/Vdd) [Min]	1.85 V

EFM32TG225 Series

Part	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Core Size	Operating Temperature [Max]	Operating Temperature [Min]	Core Processor	Peripherals	RAM Size	Speed	Program Memory Type	Number of I/O	Data Converters	Package / Case	Supplier Device Package	Program Memory Size	Mounting Type	Connectivity	Oscillator Type
Silicon Labs EFM32TG225F16-D-BGA48	1.98 V	3.8 V	32-Bit Single-Core	85 °C	-40 °C	ARM® Cortex®-M3	Brown-out Detect/Reset DMA I2S POR PWM	4K x 8	32 MHz	FLASH	37	A/D 4x12b SAR D/A 1x12b	48-VFBGA	48-BGA (4x4)	16 KB	Surface Mount	I2C IrDA SmartCard SPI UART/USART	Internal
Silicon Labs EFM32TG225F32-BGA48T	1.85 V	3.8 V	32-Bit Single-Core	85 °C	-40 °C	ARM® Cortex®-M3	Brown-out Detect/Reset DMA I2S POR PWM WDT	4K x 8	32 MHz	FLASH	37	A/D 4x12b D/A 1x12b	48-VFBGA	48-BGA (4x4)	32 KB	Surface Mount	EBI/EMI I2C IrDA SmartCard SPI UART/USART	Internal
Silicon Labs EFM32TG225F16-BGA48T	1.85 V	3.8 V	32-Bit Single-Core	85 °C	-40 °C	ARM® Cortex®-M3	Brown-out Detect/Reset DMA I2S POR PWM WDT	4K x 8	32 MHz	FLASH	37	A/D 4x12b D/A 1x12b	48-VFBGA	48-BGA (4x4)	16 KB	Surface Mount	EBI/EMI I2C IrDA SmartCard SPI UART/USART	Internal
Silicon Labs EFM32TG225F8-D-BGA48	1.98 V	3.8 V	32-Bit Single-Core	85 °C	-40 °C	ARM® Cortex®-M3	Brown-out Detect/Reset DMA I2S POR PWM	2K x 8	32 MHz	FLASH	37	A/D 4x12b SAR D/A 1x12b	48-VFBGA	48-BGA (4x4)		Surface Mount	I2C IrDA SmartCard SPI UART/USART	Internal
Silicon Labs EFM32TG225F32-D-BGA48R	1.98 V	3.8 V	32-Bit Single-Core	85 °C	-40 °C	ARM® Cortex®-M3	Brown-out Detect/Reset DMA I2S POR PWM	4K x 8	32 MHz	FLASH	37	A/D 4x12b SAR D/A 1x12b	48-VFBGA	48-BGA (4x4)	32 KB	Surface Mount	I2C IrDA SmartCard SPI UART/USART	Internal
Silicon Labs EFM32TG225F8-BGA48	1.85 V	3.8 V	32-Bit Single-Core	85 °C	-40 °C	ARM® Cortex®-M3	Brown-out Detect/Reset DMA I2S POR PWM WDT	2K x 8	32 MHz	FLASH	37	A/D 4x12b D/A 1x12b	48-VFBGA	48-BGA (4x4)		Surface Mount	EBI/EMI I2C IrDA SmartCard SPI UART/USART	Internal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

EFM32TG225 Series

ARM® Cortex®-M3 Tiny Gecko Microcontroller IC 32-Bit Single-Core 32MHz 16KB (16K x 8) FLASH 48-BGA (4x4)
