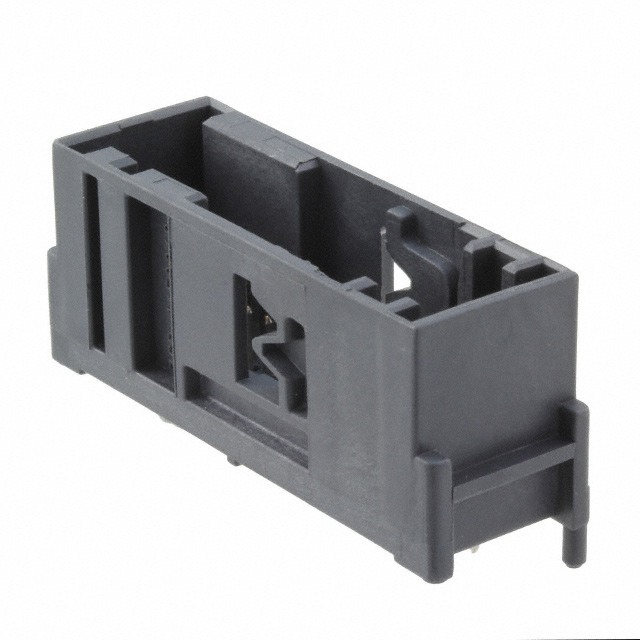

1452368-1

Active

TE Connectivity Raychem Cable Protection

CONN HEADER VERT 32POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN HEADER VERT 32POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	1452368-1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Tab
Fastening Type	Lever Lock
Features	Board Guide
Insulation Color	Gray
Insulation Height	20.2 mm
Insulation Height	0.795 in
Insulation Material	Polyethylene Terephthalate (PET), Glass Filled
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

Part	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Number of Rows	Insulation Material	Contact Type	Pitch - Mating	Pitch - Mating	Contact Material	Termination	Fastening Type	Contact Length - Post [x]	Contact Length - Post	Contact Shape	Shrouding	Insulation Color	Number of Positions Loaded	Mounting Type	Style	Features	Connector Type
TE Connectivity Raychem Cable Protection 1452368-1	20.2 mm	0.795 in	2.54 mm	0.1 in	Tin	2	Polyethylene Terephthalate (PET) Glass Filled	Tab	0.1 in	2.54 mm	Copper Alloy	Solder	Lever Lock	0.11 in	2.79 mm	Square	Shrouded - 4 Wall	Gray	All	Through Hole	Board to Board Cable	Board Guide	Header

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole 32 position 0.100" (2.54mm)

Technical documentation and resources
