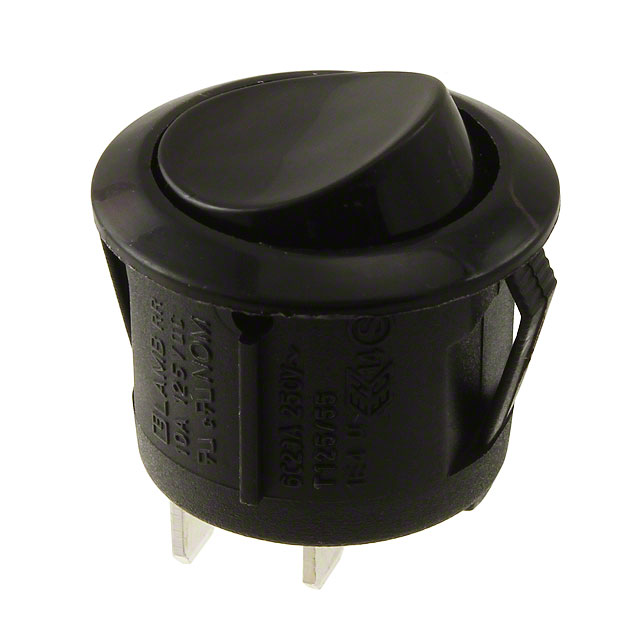

RRG31131100

Active

E-Switch

ROCKER SWITCH, NON ILLUMINATED, SPST, OFF-ON, BLACK, PANEL MOUNT, 10 A

Search across all available documentation for this part.

Active

E-Switch

ROCKER SWITCH, NON ILLUMINATED, SPST, OFF-ON, BLACK, PANEL MOUNT, 10 A

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Switch Function	Color - Actuator/Cap	Voltage Rating - AC	Actuator Type	Approval Agency	Circuit	Termination Style	Electrical Life	Current Rating (Amps)	Actuator Marking	Termination Style
E-Switch RRG31131100	-20 C	105 ░C	Panel Mount Snap-In	On-Off	Black	125 V	Round	cUL UL	SPST	Quick Connect - 0.187" (4.7mm)	6000 Cycles	10 A	No Marking
E-Switch RRG31132200	-20 C	105 ░C	Panel Mount Snap-In	On-Off	White	125 V	Round	cUL UL	SPST	Quick Connect - 0.187" (4.7mm)	6000 Cycles	10 A	No Marking
E-Switch RRG3113221Z101	-20 C	105 ░C	Panel Mount Snap-In	Off-On	White	125 V	Round	cUL UL	SPST	Quick Connect Solder	10000 Cycles	10 A		0.187 in 4.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPST 10A (AC) 125 V Panel Mount, Snap-In
