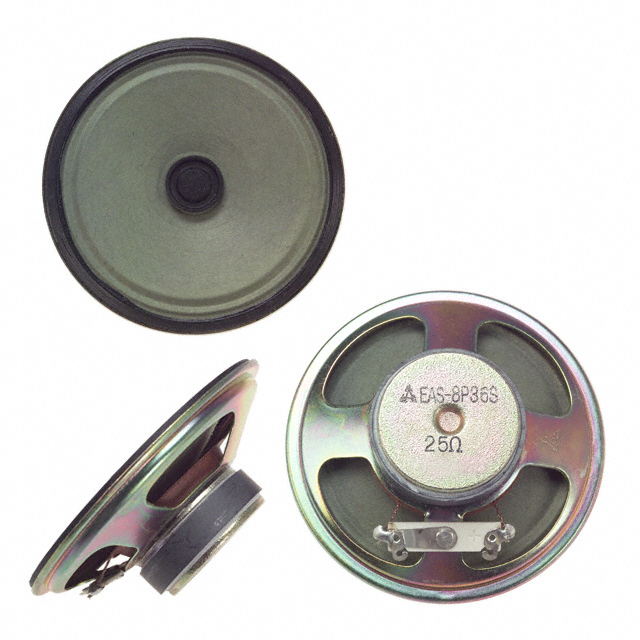

EAS-8P36S

Obsolete

Panasonic Industrial Automation Sales

SPEAKR 25OHM 630MW TOP PORT 95DB

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

SPEAKR 25OHM 630MW TOP PORT 95DB

Technical Specifications

Parameters and characteristics for this part

Part	Shape	Size / Dimension [diameter]	Size / Dimension [diameter]	Efficiency - Testing	Port Location	Efficiency - Type	Efficiency - dBA	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Impedance	Technology	Type	Power - Rated	Termination	Frequency Range [Max]	Frequency Range [Min]
Panasonic Industrial Automation Sales EAS-8P36S	Round	77 mm	3.032 in	1 mW/100mm	Top	Sound Pressure Level (SPL)	95 dBA	26 mm	1.024 in	25 Ohms	Magnetic	Full Range	630 mW	Solder Eyelet(s)
Panasonic Industrial Automation Sales EAS-8P29SG	Round	77 mm	3.031 "	1 mW/100mm	Top	Sound Pressure Level (SPL)	93 dBA	24 mm	0.945 in	8 Ohms	Magnetic	General Purpose	630 mW	Solder Eyelet(s)	4 kHz	185 Hz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

25 Ohms Full Range Speaker 630 mW Top Round
