6-1393302-0

Active

TE Connectivity AMP Connectors

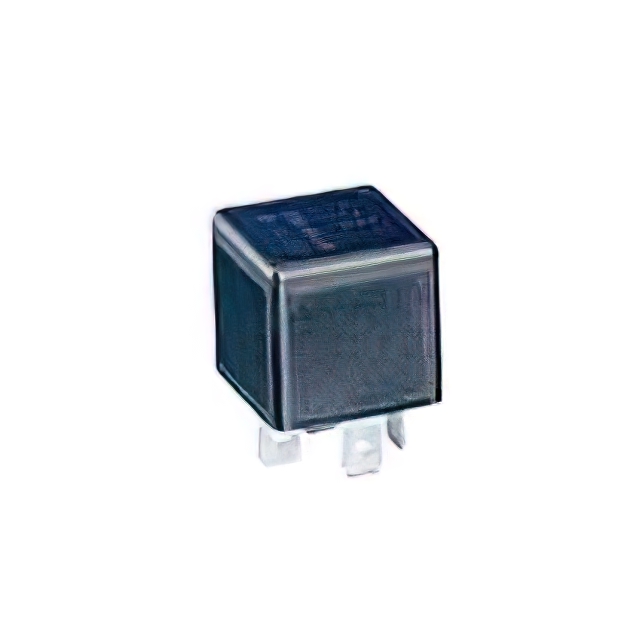

RELAY GEN PURPOSE SPDT 40A 12V

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

RELAY GEN PURPOSE SPDT 40A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY GEN PURPOSE SPDT 40A 12V

Technical documentation and resources

Parameters and characteristics commom to parts in this series

RELAY GEN PURPOSE SPDT 40A 12V

Part	Coil Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Mounting Type	Coil Power	Must Operate Voltage	Operate Time	Coil Resistance	Coil Current	Coil Type	Release Time	Features	Contact Rating (Current)	Switching Voltage	Must Release Voltage	Contact Material	Termination Style
TE Connectivity AMP Connectors 6-1393302-0	12 VDC	125 °C	-40 °C	SPDT (1 Form C)	Chassis Mount	1.8 W	7.2 VDC	7 ms	90 Ohms	133.3 mA	Non Latching	2 ms	Resistor	40 A	14 VDC	1.6 VDC	Silver Alloy
TE Connectivity AMP Connectors 6-1393302-4	24 VDC	125 °C	-40 °C	SPDT (1 Form C)	Socketable	1.8 W	14.4 VDC	7 ms	324 Ohms		Non Latching	2 ms	Resistor	60 A	24 VDC	3.2 VDC	Silver Alloy	Plug In, Quick Connect - 0.250" (6.3mm)
TE Connectivity AMP Connectors 6-1393302-1	12 VDC	125 °C	-40 °C			1.6 W	7.2 VDC	7 ms	90 Ohms	133.3 mA	Non Latching	2 ms				1.6 VDC	Silver Alloy
