24PS-JMCS-G-1B-TF(N)(LF)(SN)

Obsolete

JST Sales America Inc.

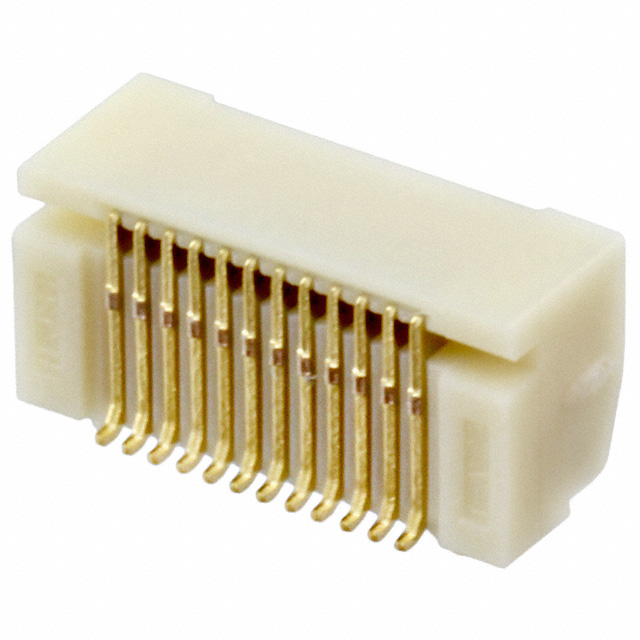

CONN PLUG 24POS R/A SMD GOLD

Search across all available documentation for this part.

Obsolete

JST Sales America Inc.

CONN PLUG 24POS R/A SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	24PS-JMCS-G-1B-TF(N)(LF)(SN)

Connector Type	Outer Shroud Contacts, Plug
Contact Finish	Gold
Features	Solder Retention, Board Guide
Height Above Board	4.33 mm
Height Above Board	0.17 in
Mounting Type	Surface Mount, Right Angle
Number of Positions	24
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Connector Type	Features	Number of Rows	Number of Positions	Height Above Board	Height Above Board	Mounting Type	Contact Finish	Pitch [x]	Pitch [x]
JST Sales America Inc. 24PS-JMCS-G-1B-TF(N)(LF)(SN)	Outer Shroud Contacts Plug	Board Guide Solder Retention	2	24	4.33 mm	0.17 in	Surface Mount Right Angle	Gold	0.5 mm	0.02 in
