Q-0J05C00030.5M

Active

Amphenol Custom Cable

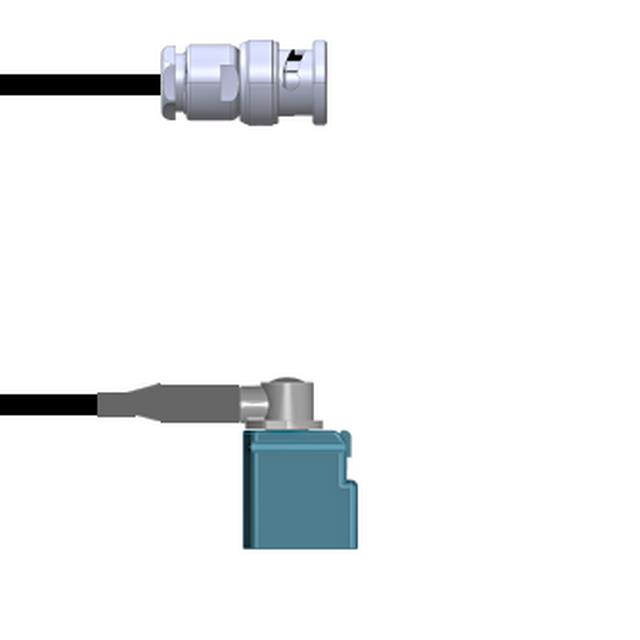

CBL ASSY BNC-FAKRA PL-JK 19.69"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0J05C00030.5M

Active

Amphenol Custom Cable

CBL ASSY BNC-FAKRA PL-JK 19.69"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0J05C00030.5M

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	Fakra Jack, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms
Style	BNC to Fakra

Q-0J05C0 Series

Part	1st Contact Gender	Frequency - Max [Max]	1st Connector Mounting Type	2nd Contact Gender	Length	Length	Length	2nd Connector Mounting Type	Cable Type	Color	Style	2nd Connector	Overall Impedance	1st Connector	Features	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-0J05C0005060i	Male	3 GHz	Free Hanging (In-Line)	Female	5 ft	1.5 m	5 '	Free Hanging (In-Line)	RG-316	Copper	BNC to Fakra	Fakra Jack Right Angle	50 Ohms	BNC Plug	Shielded
Amphenol Custom Cable Q-0J05C0003018i	Male	3 GHz	Free Hanging (In-Line)	Female				Free Hanging (In-Line)	RG-174	Black	BNC to Fakra	Fakra Jack Right Angle	50 Ohms	BNC Plug	Shielded	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0J05C00052.5M	Male	3 GHz	Free Hanging (In-Line)	Female	8.2 '	2.5 m	98.4 in	Free Hanging (In-Line)	RG-316	Copper	BNC to Fakra	Fakra Jack Right Angle	50 Ohms	BNC Plug	Shielded
Amphenol Custom Cable Q-0J05C0003024i	Male	3 GHz	Free Hanging (In-Line)	Female		609.6 mm	24 "	Free Hanging (In-Line)	RG-174	Black	BNC to Fakra	Fakra Jack Right Angle	50 Ohms	BNC Plug	Shielded
Amphenol Custom Cable Q-0J05C0003036i	Male	3 GHz	Free Hanging (In-Line)	Female		91.44 cm	36 in	Free Hanging (In-Line)	RG-174	Black	BNC to Fakra	Fakra Jack Right Angle	50 Ohms	BNC Plug	Shielded
Amphenol Custom Cable Q-0J05C0005084i	Male	3 GHz	Free Hanging (In-Line)	Female	7 ft	2.1 m	84 in	Free Hanging (In-Line)	RG-316	Copper	BNC to Fakra	Fakra Jack Right Angle	50 Ohms	BNC Plug	Shielded
Amphenol Custom Cable Q-0J05C0003003M	Male	3 GHz	Free Hanging (In-Line)	Female	9.8 '	3 m	118.1 in	Free Hanging (In-Line)	RG-174	Black	BNC to Fakra	Fakra Jack Right Angle	50 Ohms	BNC Plug	Shielded
Amphenol Custom Cable Q-0J05C00032.5M	Male	3 GHz	Free Hanging (In-Line)	Female	8.2 '	2.5 m	98.4 in	Free Hanging (In-Line)	RG-174	Black	BNC to Fakra	Fakra Jack Right Angle	50 Ohms	BNC Plug	Shielded
Amphenol Custom Cable Q-0J05C0003.25M	Male	3 GHz	Free Hanging (In-Line)	Female				Free Hanging (In-Line)	RG-174	Black	BNC to Fakra	Fakra Jack Right Angle	50 Ohms	BNC Plug	Shielded		250 mm	9.843 "
Amphenol Custom Cable Q-0J05C00030.5M	Male	3 GHz	Free Hanging (In-Line)	Female		50 cm	19.69 "	Free Hanging (In-Line)	RG-174	Black	BNC to Fakra	Fakra Jack Right Angle	50 Ohms	BNC Plug	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 70.66
		25	$ 69.29
		50	$ 67.91
		100	$ 66.54
		250	$ 65.17

Description

General part information

Q-0J05C0 Series

Cable Assembly Coaxial BNC to Fakra RG-174 19.69" (500.00mm)

Documents

Technical documentation and resources

No documents available
