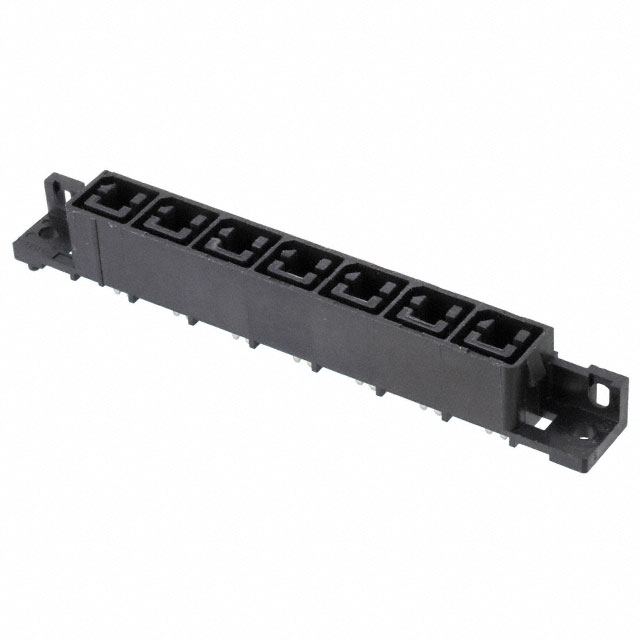

556881-7

556881-7

Active
TE Connectivity AMP Connectors

RCPT ASY,VRT,AMPINRGY WTB,7POS ROHS COMPLIANT: YES

Find alt

Description

General part information

556881 Series

PCB Mount Receptacle, Vertical, Wire-to-Board, 7 Position, 11.18 mm [.44 in] Centerline, Fully Shrouded, Tin (Sn), Through Hole - Solder, Power, Black

Technical Specifications

Parameters and characteristics for this part

Specification556881-7
ColorBlack
Connector TypeReceptacle, Female Blade Sockets
Contact FinishTin
Contact Finish Thickness100 µin
Contact MaterialCopper
Current Rating35 A
Fastening TypeLocking Ramp
FeaturesBoard Guide
Material - InsulationPPA, Polyphthalamide
Mounting TypeThrough Hole
Number of Positions7
Number of Rows1
Operating Temperature (Max)105 °C
Operating Temperature (Min)0 °C
Pitch0.44 in
TerminationSolder
Voltage Rating600 V
