Specification	DSP25-12AT-TRL

Current - Average Rectified (Io) (per Diode)	25 A
Current - Reverse Leakage	40 µA
Diode Configuration	Series Connection
Diode Pair Count	1 pair
Mounting Type	Surface Mount
Operating Temperature - Junction (Max)	175 °C
Operating Temperature - Junction (Min)	-40 °C

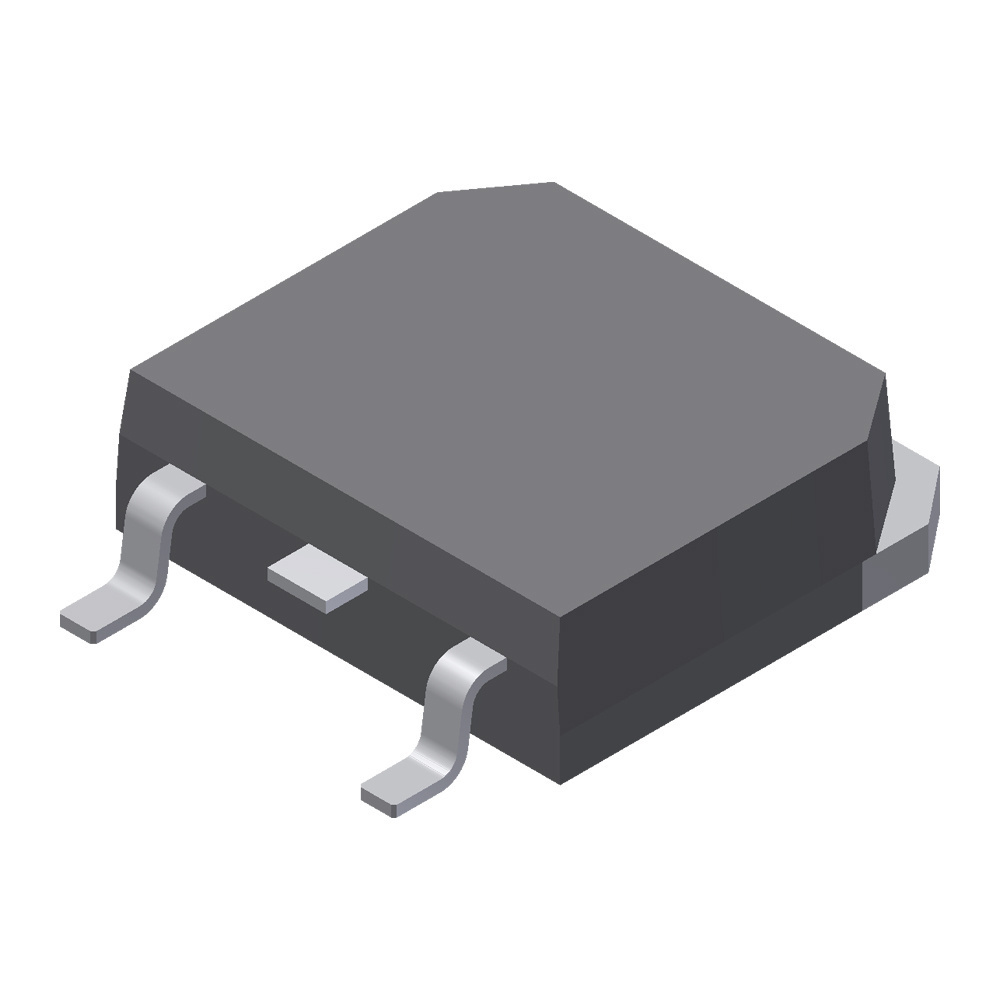

Package / Case	D3PAK (2 Leads + Tab), TO-268-3, TO-268AA
Package Name	TO-268AA
Speed	Standard Recovery
Speed - Fast Recovery (Minimum)	200 mA, 500 ns
Speed - Recovery Current	200 mA, 200 mA
Speed - Recovery Time	500 ns
Technology	Standard
Voltage - DC Reverse (Vr) (Max)	1200 V
Voltage - Forward (Vf) (Max)	1.23 V

DSP25-12AT Series

Power Diode Discretes-Rectifier TO-268AA

Part	Voltage - Forward (Vf) (Max)	Current - Reverse Leakage	Package / Case	Diode Pair Count	Diode Configuration	Voltage - DC Reverse (Vr) (Max)	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Current - Average Rectified (Io) (per Diode)	Package Name	Speed - Fast Recovery (Minimum)	Speed	Speed - Recovery Current	Speed - Recovery Time	Technology	Mounting Type
LITTELFUSE DSP25-12AT-TUB	1.6 V	2 mA	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA	1 pair	Series Connection	1200 V	180 °C	-40 °C	28 A	TO-268AA	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	Standard	Surface Mount
LITTELFUSE DSP25-12AT-TRL	1.23 V	40 µA	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA	1 pair	Series Connection	1200 V	175 °C	-40 °C	25 A	TO-268AA	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	Standard	Surface Mount
