CDLB-0-2700-9908-I
ActiveVisual Communications Company - VCC

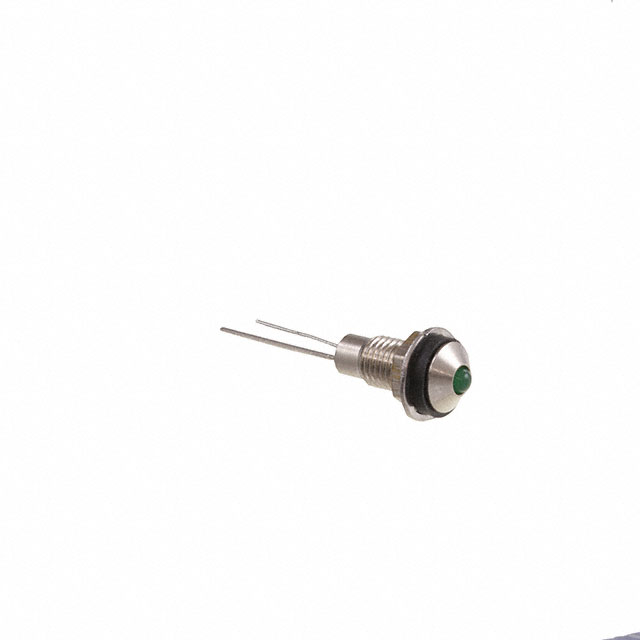

LONG BODY PMI RND .230" LED 12V
CDLB-0-2700-9908-I
ActiveVisual Communications Company - VCC
LONG BODY PMI RND .230" LED 12V
Description
General part information
CDLB-0-2700 Series
LED Panel Indicator 60° 12V 20mA PC Pin
Technical Specifications
Parameters and characteristics for this part
| Specification | CDLB-0-2700-9908-I |
|---|---|
| Current | 20 mA |
| Ingress Protection | IP67 |
| Lens Color | Green |
| Lens Style | Round, Domed Top |
| Millicandela Rating | 199 mcd |
| Panel Cutout Dimension | 0.24 " |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | PC Pin |
| Type | LED |
| Viewing Angle | 60 ° |
| Voltage | 12 VDC |
| Wavelength - Peak | 574 nm |
