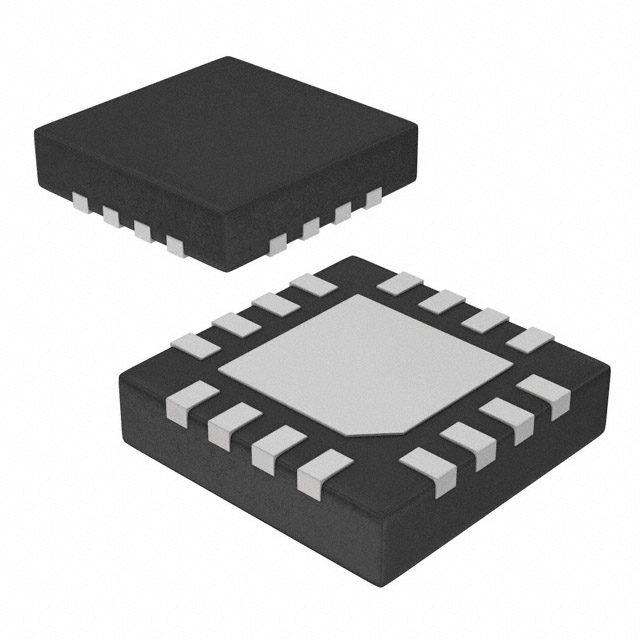

TS4997IQT
ActiveSTMicroelectronics
IC AMP CLASS AB STEREO 1W 16QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TS4997IQT
ActiveSTMicroelectronics
IC AMP CLASS AB STEREO 1W 16QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TS4997IQT |
|---|---|
| Features | Depop, Differential Inputs, 3D, Standby, Thermal Protection |
| Max Output Power x Channels @ Load [x] | 1 W |
| Max Output Power x Channels @ Load [y] | 2 |
| Max Output Power x Channels @ Load [z] | 8 Ohm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | 2-Channel (Stereo) |
| Package / Case | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) |
| Type | Class AB |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
TS4997 Series
IC AMP CLASS AB STEREO 1W 16QFN
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Output Type | Max Output Power x Channels @ Load [x] | Max Output Power x Channels @ Load [z] | Max Output Power x Channels @ Load [y] | Features | Supplier Device Package | Mounting Type | Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics TS4997IQT | 85 °C | -40 °C | 2-Channel (Stereo) | 1 W | 8 Ohm | 2 | 3D, Depop, Differential Inputs, Standby, Thermal Protection | 16-QFN (4x4) | Surface Mount | Class AB | 2.7 V | 5.5 V | 16-VQFN Exposed Pad |
Description
General part information
TS4997 Series
Amplifier IC 2-Channel (Stereo) Class AB 16-QFN (4x4)
