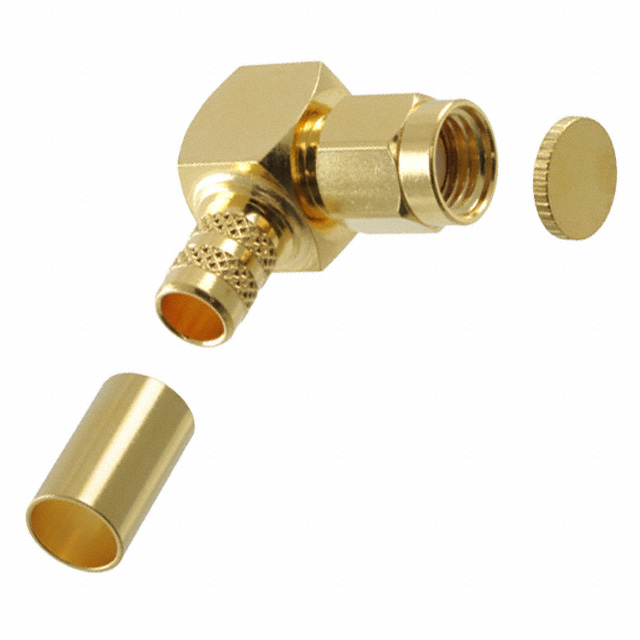

132239RP

Active

Amphenol RF

CONN RPSMA PLUG R/A 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN RPSMA PLUG R/A 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	132239RP

Body Finish	Gold
Body Material	Brass
Cable Group	LMR-240, Belden 9258, RG-8X
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	RP-SMA
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Connector, 1 Ferrule, 1 End Cap
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	375 V

Part	Body Material	Voltage Rating	Number of Ports	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Frequency - Max [Max]	Center Contact Plating	Shield Termination	Dielectric Material	Connector Style	Body Finish	Impedance	Mating Cycles	Cable Group	Connector Type	Contact Termination	Mounting Type	Center Contact Material
Amphenol RF 132239RP	Brass	375 V	1	Gold	-65 ░C	165 °C	1 Connector 1 End Cap 1 Ferrule	12.4 GHz	Gold	Crimp	Polytetrafluoroethylene (PTFE)	RP-SMA	Gold	50 Ohms	500	Belden 9258 LMR-240 RG-8X	Female Socket Plug	Solder	Free Hanging (In-Line) Right Angle	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-SMA Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
