9962 0091000

Active

Belden Inc.

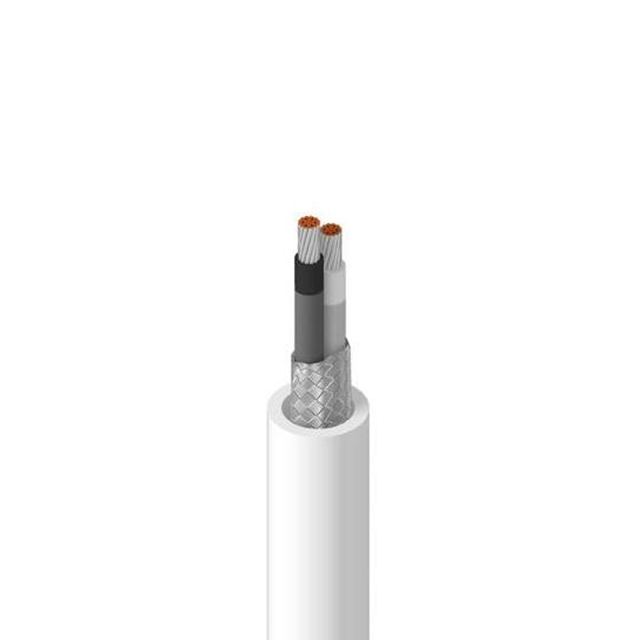

CABLE 2COND 20AWG WHT SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 20AWG WHT SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	9962 0091000

Cable Type	Multi-Conductor
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	32 AWG
Jacket (Insulation) Diameter [diameter]	4.88 mm
Jacket (Insulation) Diameter [diameter]	0.192 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.406 mm
Jacket (Insulation) Thickness	0.016 in
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Shield Coverage	90 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Communications
Wire Gauge	20 AWG

Part	Length	Length	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Shield Coverage	Cable Type	Shield Type	Usage	Conductor Material	Shield Material	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Belden Inc. 9962 0091000	1000 ft	304.8 m	2	-20 C	105 ░C	Poly-Vinyl Chloride (PVC)	90 %	Multi-Conductor	Braid	Communications	Copper Tinned	Copper Tinned	19	32 AWG	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	0.406 mm	0.016 in	20 AWG	4.88 mm	0.192 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 3.88

General part information

2 Conductor Multi-Conductor Cable White 20 AWG Braid 1000.0' (304.8m)
