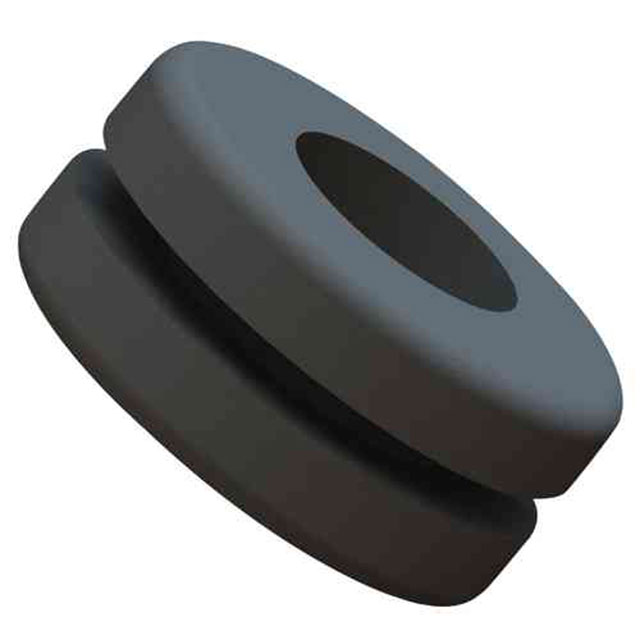

GRD2075061PA
ActiveEssentra Access Solutions
DIAPHRAGM GROMMET - ONE SIDED CU
Deep-Dive with AI
Search across all available documentation for this part.
GRD2075061PA
ActiveEssentra Access Solutions
DIAPHRAGM GROMMET - ONE SIDED CU
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GRD2075061PA |
|---|---|
| Bushing, Grommet Type | Grommet |
| Color | Black |
| Diameter - Inside [diameter] | 16 mm |
| Diameter - Inside [diameter] | 0.63 in |
| For Use With/Related Products | Wires, Cable |
| Material | Poly-Vinyl Chloride (PVC) |
| Material Flammability Rating | UL94 HB |
| Panel Cutout Dimensions [diameter] | 0.75 in |
| Panel Cutout Dimensions [diameter] | 19.05 mm |
| Panel Thickness | 0.06 in |
| Panel Thickness | 1.52 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 0.93 | |
| 10 | $ 0.71 | |||
| 25 | $ 0.64 | |||
| 50 | $ 0.59 | |||
| 100 | $ 0.54 | |||
| 250 | $ 0.49 | |||
| 500 | $ 0.46 | |||
| 1000 | $ 0.42 | |||
| 2500 | $ 0.38 | |||
Description
General part information
GRD2075061 Series
Circular - 0.750" (19.05mm) Grommet 0.630" (16.00mm) Black
Documents
Technical documentation and resources
No documents available
