A9TS22-0012

Active

Omron Electronics Inc-EMC Div

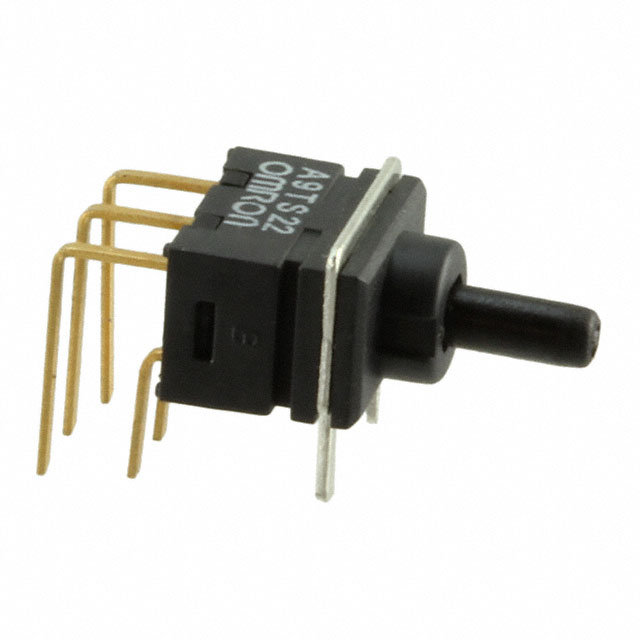

SWITCH TOGGLE DPDT 100MA 28V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH TOGGLE DPDT 100MA 28V

Technical Specifications

Parameters and characteristics for this part

Specification	A9TS22-0012

Actuator Length [x]	3.8 mm
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	DPDT
Current Rating (Amps)	100 mA
Electrical Life	50000 Cycles
Features	Sealed - Flux Protection
Illumination	Non-Illuminated
Ingress Protection	IP64 - Dust Tight, Water Resistant
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Switch Function	On-Off-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Actuator Type	Illumination	Electrical Life	Circuit	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Bushing Thread	Actuator Length [x]	Voltage Rating - AC	Features	Termination Style	Mounting Type	Voltage Rating - DC	Current Rating (Amps)	Ingress Protection
Omron Electronics Inc-EMC Div A9TS22-0012	Standard Round	Non-Illuminated	50000 Cycles	DPDT	On-Off-On	-20 C	80 C	Unthreaded	3.8 mm	28 V	Sealed - Flux Protection	PC Pin	Through Hole Right Angle	28 V	100 mA	IP64 - Dust Tight Water Resistant
