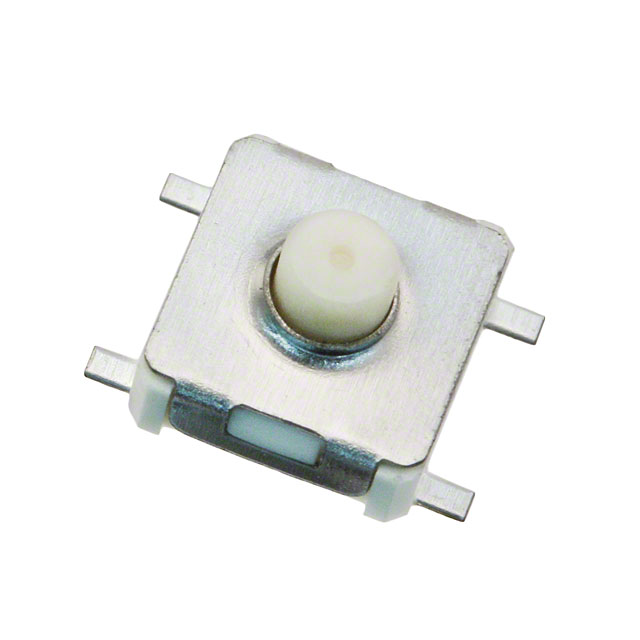

TL3350BF100Q

Obsolete

E-Switch

SWITCH TACT SPST-NO 0.02A 30V

Search across all available documentation for this part.

Obsolete

E-Switch

SWITCH TACT SPST-NO 0.02A 30V

Technical Specifications

Parameters and characteristics for this part

Specification	TL3350BF100Q

Actuator Height off PCB, Vertical	3.8 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO x 2
Contact Rating @ Voltage	0.02 A
Illumination	Non-Illuminated
Mechanical Life	10000 Steps
Mounting Type	Surface Mount
Operating Force	100 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	6.5 mm
Outline [y]	6.2 mm
Switch Function	Off-Mom-Mom
Switch Travel [custom]	0.55 mm, 0.3 mm
Termination Style	Gull Wing

Part	Termination Style	Outline [x]	Outline [y]	Mounting Type	Actuator Material	Switch Function	Circuit	Operating Force	Switch Travel [custom]	Contact Rating @ Voltage	Mechanical Life	Actuator Type	Illumination	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Height off PCB, Vertical	Actuator Orientation
E-Switch TL3350BF100Q	Gull Wing	6.5 mm	6.2 mm	Surface Mount	Nylon Polyamide (PA)	Off-Mom-Mom	SPST-NO x 2	100 gf	0.3 mm 0.55 mm	0.02 A	10000 Steps	Standard	Non-Illuminated	-20 C	70 °C	3.8 mm	Top Actuated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Tactile Switch SPST-NO x 2 Top Actuated Surface Mount
