Technical Specifications
Parameters and characteristics for this part
| Specification | L9733CN |
|---|---|
| Current - Output (Max) [Max] | 1 A |
| Fault Protection | Open Load Detect, Over Temperature |
| Features | PWM Input |
| Input Type | Non-Inverting |
| Interface | SPI |
| Mounting Type | Surface Mount |
| Number of Outputs | 8 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | High Side or Low Side |
| Output Type | N-Channel |
| Package / Case | 28-SSOP |
| Package / Case [y] | 0.295 in |
| Package / Case [y] | 7.5 mm |
| Ratio - Input:Output | 1:8 |
| Rds On (Typ) | 700 mOhm |

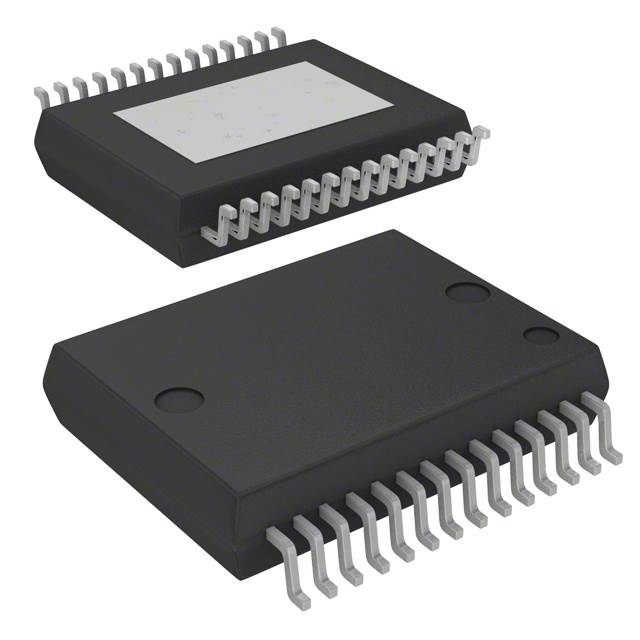

| Supplier Device Package | PowerSSO-28 |
| Switch Type | General Purpose |
| Voltage - Load [Max] | 18 V |
| Voltage - Load [Min] | 4.5 V |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
L9733 Series
The L9733 is a highly flexible monolithic, medium current, output driver that incorporates 8 outputs that can be used as either internal low or high-side drives in any combination.
Outputs 1-8 are self-configuring as high or low-side drives. Self-configuration allows a user to connect a high or low-side load to any of these outputs and the L9733 will drive them correctly as well as provide proper fault mode operation with no other needed inputs. In addition, outputs 6, 7 and 8 can be PWM controlled via a external pins (IN6-8).
This device is capable of switching variable load currents over the ambient range of -40 °C to +125 °C. The outputs are MOSFET drivers to minimize Vdd current requirements. For low-side configured outputs an internal zener clamp from the drain to gate with a breakdown of 50 V minimum will provide fast turn off of inductive loads. When a high-side configured output is commanded Off after having been commanded On, the source voltage will go to (VGND - 15 V).
