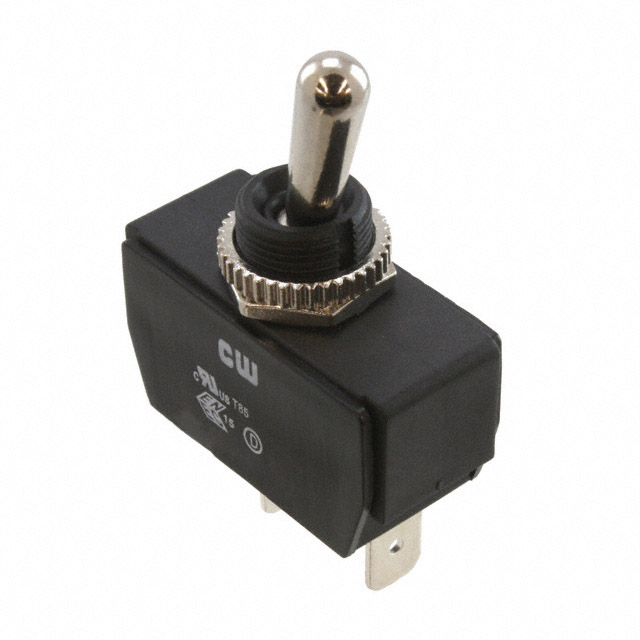

GTS447A101HR

Active

CW Industries

SWITCH TOGGLE SPST 20A 277V

Search across all available documentation for this part.

Active

CW Industries

SWITCH TOGGLE SPST 20A 277V

Technical Specifications

Parameters and characteristics for this part

Specification	GTS447A101HR

Actuator Length [x]	17.5 mm
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPST
Current Rating (Amps)	20 A
Electrical Life	10000 Cycles
Illumination	Non-Illuminated
Ingress Protection	IP56 - Dust Protected, Water Resistant
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	250 V

SWITCH TOGGLE SPST 20A 277V

Part	Ingress Protection	Panel Cutout Dimensions [diameter]	Bushing Thread	Actuator Length [x]	Termination Style	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Electrical Life	Voltage Rating - AC	Actuator Type	Circuit	Illumination
CW Industries GTS447A101HR	IP56 - Dust Protected, Water Resistant	12.2 mm	15/32-32	17.5 mm	Quick Connect - 0.250" (6.3mm)	20 A	0 °C	85 °C	On-Off	10000 Cycles	250 V	Standard Round	SPST	Non-Illuminated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPST Panel Mount
