Q-2N02Z0008003M

Active

Amphenol Custom Cable

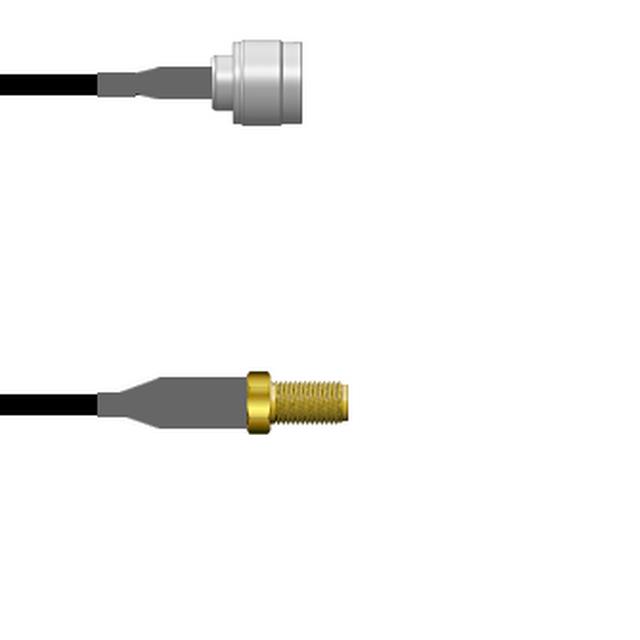

CBL ASSY SMA-NTYPE JACK-PLG 9.8'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2N02Z0008003M

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE JACK-PLG 9.8'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2N02Z0008003M

1st Connector	SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	3 m
Length	118.1 in
Length	9.8 '
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-2N02Z0 Series

Part	1st Connector	Frequency - Max [Max]	Length	Length	Length	Overall Impedance	1st Contact Gender	Color	Features	1st Connector Mounting Type	Style	2nd Connector	2nd Connector Mounting Type	2nd Contact Gender	Cable Type	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-2N02Z00081.5M	SMA Jack	11 GHz	59.1 in	4.9 ft	1.5 m	50 Ohms	Female	Black	Shielded	Free Hanging (In-Line)	SMA to N-Type	N-Type Plug	Free Hanging (In-Line)	Male	RG-58
Amphenol Custom Cable Q-2N02Z0008018i	SMA Jack	11 GHz				50 Ohms	Female	Black	Shielded	Free Hanging (In-Line)	SMA to N-Type	N-Type Plug	Free Hanging (In-Line)	Male	RG-58	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2N02Z0008001M	SMA Jack	11 GHz	39.4 in	3.3 ft	1 m	50 Ohms	Female	Black	Shielded	Free Hanging (In-Line)	SMA to N-Type	N-Type Plug	Free Hanging (In-Line)	Male	RG-58
Amphenol Custom Cable Q-2N02Z0008006i	SMA Jack	11 GHz	6 in		152.4 mm	50 Ohms	Female	Black	Shielded	Free Hanging (In-Line)	SMA to N-Type	N-Type Plug	Free Hanging (In-Line)	Male	RG-58
Amphenol Custom Cable Q-2N02Z0008060i	SMA Jack	11 GHz	5 '	5 ft	1.5 m	50 Ohms	Female	Black	Shielded	Free Hanging (In-Line)	SMA to N-Type	N-Type Plug	Free Hanging (In-Line)	Male	RG-58
Amphenol Custom Cable Q-2N02Z0008003M	SMA Jack	11 GHz	118.1 in	9.8 '	3 m	50 Ohms	Female	Black	Shielded	Free Hanging (In-Line)	SMA to N-Type	N-Type Plug	Free Hanging (In-Line)	Male	RG-58
Amphenol Custom Cable Q-2N02Z0008084i	SMA Jack	11 GHz	84 in	7 ft	2.1 m	50 Ohms	Female	Black	Shielded	Free Hanging (In-Line)	SMA to N-Type	N-Type Plug	Free Hanging (In-Line)	Male	RG-58
Amphenol Custom Cable Q-2N02Z0008002M	SMA Jack	11 GHz	78.7 in	6.6 ft	2 m	50 Ohms	Female	Black	Shielded	Free Hanging (In-Line)	SMA to N-Type	N-Type Plug	Free Hanging (In-Line)	Male	RG-58
Amphenol Custom Cable Q-2N02Z0008.25M	SMA Jack	11 GHz				50 Ohms	Female	Black	Shielded	Free Hanging (In-Line)	SMA to N-Type	N-Type Plug	Free Hanging (In-Line)	Male	RG-58		250 mm	9.843 "
Amphenol Custom Cable Q-2N02Z0008024i	SMA Jack	11 GHz	24 "		609.6 mm	50 Ohms	Female	Black	Shielded	Free Hanging (In-Line)	SMA to N-Type	N-Type Plug	Free Hanging (In-Line)	Male	RG-58

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 85.03
		25	$ 79.16
		50	$ 73.30
		100	$ 68.27
		250	$ 64.08

Description

General part information

Q-2N02Z0 Series

Cable Assembly Coaxial SMA to N-Type RG-58 118.1" (3.0m) 9.8'

Documents

Technical documentation and resources

No documents available
