TA3MSHF

Active

Switchcraft Inc.

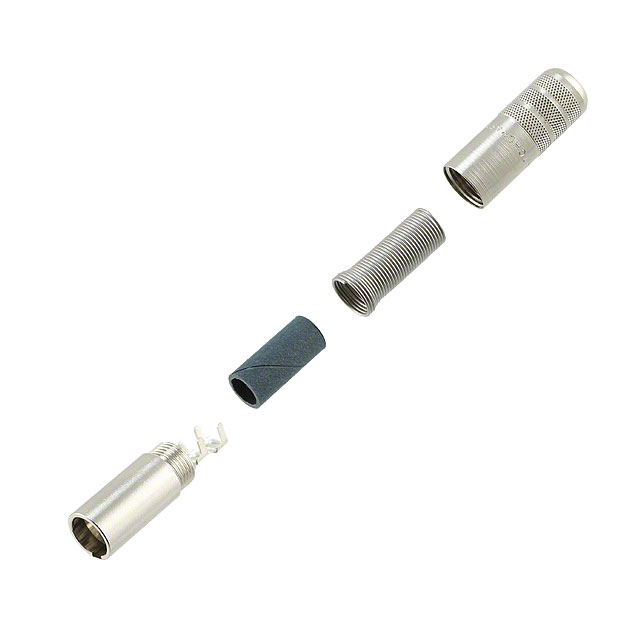

CONN RCPT MALE MINI XLR 3P SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE MINI XLR 3P SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	TA3MSHF

Applications	Audio, Medical
Backshell Material, Plating	Copper Alloy, Nickel
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Alloy
Shell Size - Insert	Mini XLR
Shielding	Shielded
Voltage Rating	125 VAC

CONN RCPT MALE MINI XLR 3P SLDR

Part	Current Rating (Amps)	Material Flammability Rating	Applications	Contact Finish - Mating	Fastening Type	Features	Orientation	Mounting Type	Contact Material	Shell Size - Insert	Shell Finish	Backshell Material, Plating	Voltage Rating	Insert Material	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Shielding	Primary Material	Color
Switchcraft Inc. TA3MSHF	5 A	UL94 V-0	Audio, Medical	Silver	Latch Lock	Backshell, Cable Clamp, Ground, Strain Relief	Keyed	Free Hanging (In-Line)	Copper Alloy	Mini XLR	Nickel	Copper Alloy, Nickel	125 VAC	Thermoplastic	Copper Alloy	85 °C	-55 °C	Male Pins, Receptacle	Shielded	Metal	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 9.93

General part information

3 Position Circular Connector Receptacle, Male Pins Solder Cup
