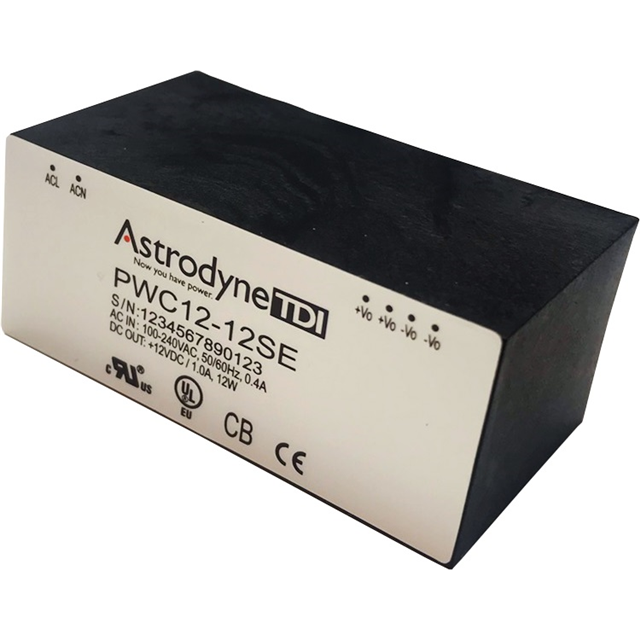

Specification	PWC12-15SE

Applications	ITE (Commercial), Medical
Approval Agency	UL, cURus
Current - Output (Max)	800 mA
Efficiency	75 %
Features	Universal Input
Line Regulation	0.5 %
Load Regulation (Percent)	1 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Package / Case	6-SIP Module
Power (Watts)	12 W
Size / Dimension Height	1.24 in
Size / Dimension Length	2.11 in
Size / Dimension Width	0.92 in
Standard Number	60601-1, 60950-1
Type	Enclosed
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Output 1	15 V

PWC12 Series

Part	Number of Outputs	Mounting Type	Approval Agency	Voltage - Output 1	Efficiency	Features	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Standard Number	Power (Watts)	Package / Case	Applications	Load Regulation (Percent)	Operating Temperature (Max)	Operating Temperature (Min)	Current - Output (Max)	Line Regulation	Type	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width
Astrodyne TDI PWC12-9SE	1	Through Hole	cURus UL	9 V	75 %	Universal Input	90 V	264 V	60601-1 60950-1	12 W	6-SIP Module	ITE (Commercial) Medical	1 %	70 °C	-20 °C	1.34 A	0.5 %	Enclosed	2.11 in	1.24 in	0.92 in
Astrodyne TDI PWC12-5	1	Through Hole	cURus UL	5 V	72 %	Universal Input	90 V	264 V	60601-1 60950-1	12 W	4-DIP Module	ITE (Commercial) Medical	1 %	70 °C	-20 °C	2.4 A	0.5 %	Open Frame	2.06 in	0.91 in	1.07 in
Astrodyne TDI PWC12-48S	1	Through Hole	cURus UL	48 V	77 %	Universal Input	90 V	264 V	60601-1 60950-1	12 W	6-SIP Module	ITE (Commercial) Medical	1 %	70 °C	-20 °C	250 mA	0.5 %	Open Frame	2 in	1.12 in	0.69 in
Astrodyne TDI PWC12-5S	1	Through Hole	cURus UL	5 V	72 %	Universal Input	90 V	264 V	60601-1 60950-1	12 W	6-SIP Module	ITE (Commercial) Medical	1 %	70 °C	-20 °C	2.4 A	0.5 %	Open Frame	2 in	1.12 in	0.69 in
Astrodyne TDI PWC12-12	1	Through Hole	cURus UL	12 V	75 %	Universal Input	90 V	264 V	60601-1 60950-1	12 W	4-DIP Module	ITE (Commercial) Medical	1 %	70 °C	-20 °C	1 A	0.5 %	Open Frame	2.06 in	0.91 in	1.07 in
Astrodyne TDI PWC12-15SE	1	Through Hole	cURus UL	15 V	75 %	Universal Input	90 V	264 V	60601-1 60950-1	12 W	6-SIP Module	ITE (Commercial) Medical	1 %	70 °C	-20 °C	800 mA	0.5 %	Enclosed	2.11 in	1.24 in	0.92 in
Astrodyne TDI PWC12-12SE	1	Through Hole	cURus UL	12 V	75 %	Universal Input	90 V	264 V	60601-1 60950-1	12 W	6-SIP Module	ITE (Commercial) Medical	1 %	70 °C	-20 °C	1 A	0.5 %	Enclosed	2.11 in	1.24 in	0.92 in
Astrodyne TDI PWC12-15E	1	Through Hole	CB CE cURus UL	15 V	80 %	Universal Input	90 V	264 V		12 W	4-DIP Module	ITE (Commercial)	1 %	70 °C	-20 °C	800 mA	0.5 %	Enclosed	2.06 in	0.91 in	1.07 in
Astrodyne TDI PWC12-24E	1	Through Hole	CB CE cURus UL	24 V	82 %	Universal Input	90 V	264 V		12 W	4-DIP Module	ITE (Commercial)	1 %	70 °C	-20 °C	500 mA	0.5 %	Enclosed	2.06 in	0.91 in	1.07 in
Astrodyne TDI PWC12-48	1	Through Hole	cURus UL	48 V	77 %	Universal Input	90 V	264 V	60601-1 60950-1	12 W	4-DIP Module	ITE (Commercial) Medical	1 %	70 °C	-20 °C	250 mA	0.5 %	Open Frame	2.06 in	0.91 in	1.07 in
