ERA.01.250.DLL

Active

LEMO

CONN MINI COAX RCPT STR 50 OHM

Search across all available documentation for this part.

Active

LEMO

CONN MINI COAX RCPT STR 50 OHM

Technical Specifications

Parameters and characteristics for this part

CONN MINI COAX RCPT STR 50 OHM

Part	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Voltage Rating	Fastening Type	Impedance	Housing Color	Body Finish	Ingress Protection	Shield Termination	Contact Termination	Connector Type	Center Contact Material	Number of Ports	Body Material	Mounting Feature	Dielectric Material	Connector Style	Mating Cycles
LEMO ERA.01.250.DLL	Gold	230 °C	-55 °C	1 Connector, 1 Nut	300 VDC	Push-Pull	50 Ohms	Gold	Gold	IP50	Solder	Solder Cup	Female Socket, Receptacle	Bronze	1	Brass	Bulkhead - Rear Side Nut	Polyetheretherketone (PEEK)	Miniature Coaxial	1000

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

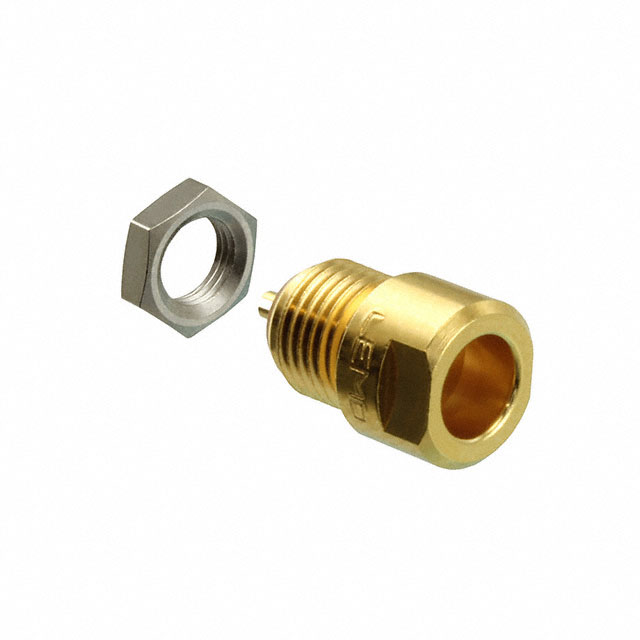

Miniature Coaxial Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder Cup
