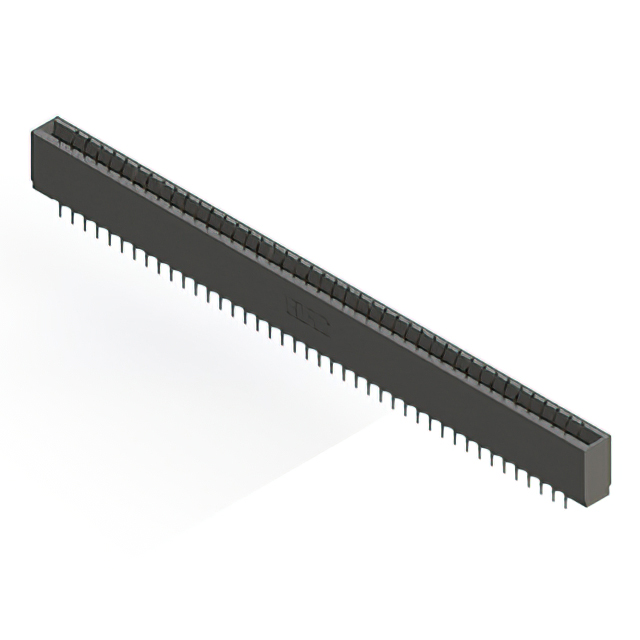

737-084-525-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 84POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

737-084-525-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 84POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	737-084-525-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	84
Number of Positions/Bay/Row [custom]	42
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Press-Fit
Termination Rows	2

737-084 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Read Out	Mounting Type	Gender	Color	Termination Rows	Contact Finish	Contact Type	Number of Positions/Bay/Row [custom]	Card Type	Number of Positions	Contact Material	Pitch [x]	Pitch [x]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Rows	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 737-084-540-201	-40 °C	105 ░C	Press-Fit Wire Wrap	Dual	Through Hole	Female	Black	2	Gold	Cantilever	42	Non Specified - Dual Edge	84	Copper Alloy	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Polyester Thermoplastic	0.76 Ám	30 Áin
EDAC Inc. 737-084-541-201	-40 °C	105 ░C	Press-Fit Wire Wrap	Dual	Through Hole	Female	Black	2	Gold	Cantilever	42	Non Specified - Dual Edge	84	Copper Alloy	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Polyester Thermoplastic	0.76 Ám	30 Áin
EDAC Inc. 737-084-520-201	-40 °C	105 ░C	Press-Fit	Dual	Through Hole	Female	Black	2	Gold	Cantilever	42	Non Specified - Dual Edge	84	Copper Alloy	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Polyester Thermoplastic	0.76 Ám	30 Áin
EDAC Inc. 737-084-525-201	-40 °C	105 ░C	Press-Fit	Dual	Through Hole	Female	Black	2	Gold	Cantilever	42	Non Specified - Dual Edge	84	Copper Alloy	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Polyester Thermoplastic	0.76 Ám	30 Áin
EDAC Inc. 737-084-545-201	-40 °C	105 ░C	Press-Fit Wire Wrap	Dual	Through Hole	Female	Black	2	Gold	Cantilever	42	Non Specified - Dual Edge	84	Copper Alloy	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Polyester Thermoplastic	0.76 Ám	30 Áin
EDAC Inc. 737-084-560-201	-40 °C	105 ░C	Press-Fit	Dual	Through Hole	Female	Black	2	Gold	Cantilever Make Before Break	42	Non Specified - Dual Edge	84	Copper Alloy	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Polyester Thermoplastic	0.76 Ám	30 Áin
EDAC Inc. 737-084-560-206	-40 °C	105 ░C	Press-Fit	Dual	Through Hole	Female	Black	2	Gold	Cantilever Make Before Break	42	Non Specified - Dual Edge	84	Copper Alloy	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Polyester Thermoplastic	0.76 Ám	30 Áin
EDAC Inc. 737-084-522-201	-40 °C	105 ░C	Press-Fit	Dual	Through Hole	Female	Black	2	Gold	Cantilever	42	Non Specified - Dual Edge	84	Copper Alloy	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Polyester Thermoplastic	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 11.59

Description

General part information

737-084 Series

84 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
