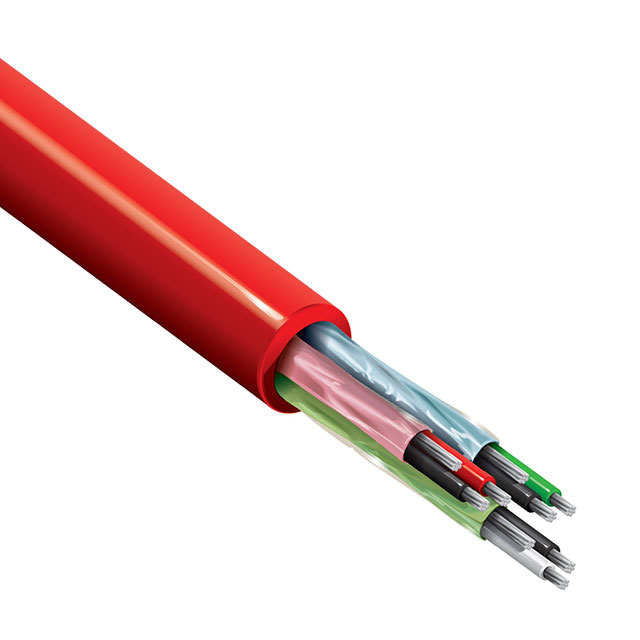

88777 002100
ActiveBelden Inc.
MULTI-PAIR 6COND 22AWG RED 100'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
88777 002100
ActiveBelden Inc.
MULTI-PAIR 6COND 22AWG RED 100'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 88777 002100 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Fluorinated Ethylene-Propylene (FEP) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 5.94 mm |
| Jacket (Insulation) Diameter [diameter] | 0.234 " |
| Jacket (Insulation) Material | Fluorinated Ethylene-Propylene (FEP) |
| Jacket (Insulation) Thickness | 0.356 mm |
| Jacket (Insulation) Thickness | 0.014 in |
| Jacket Color | Red |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 6 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -70 °C |
| Ratings | UL Style CMP |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 923.89 | |
| 2 | $ 878.13 | |||
| 3 | $ 852.23 | |||
| 5 | $ 820.49 | |||
| 7 | $ 800.10 | |||
| 10 | $ 778.94 | |||
Description
General part information
88777 Series
6 (3 Pair Twisted) Conductor Multi-Pair Cable Red 22 AWG Foil 100.0' (30.5m)
