LP876242Q1EVM
ActiveTexas Instruments
EVAL BOARD FOR LP876242Q1

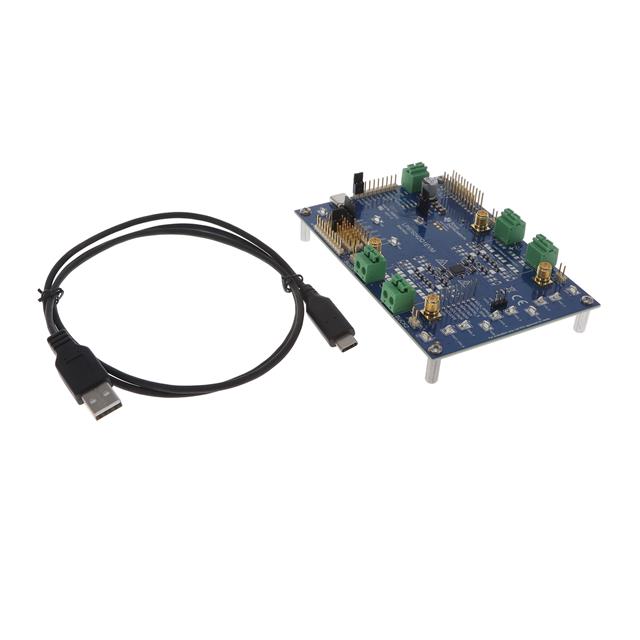

LP876242Q1EVM
ActiveTexas Instruments
EVAL BOARD FOR LP876242Q1
Description
General part information
LP876242Q1EVM
LP876242-Q1 - 4 Isolated Outputs DC/DC, Step Down Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | LP876242Q1EVM |
|---|---|
| Contents | Board, Cable |
| Current - Output (Value 1) | 4 A |
| Current - Output (Value 2) | 3 A |
| Current - Output (Value 3) | 3 A |
| Current - Output (Value 4) | 2 A |
| Frequency - Switching | 8.8 MHz |
| Isolated Output Count | 4 count |
| Main Purpose | DC/DC, Step Down |
| Output Type | Isolated |
| Regulator Topology | Buck |
| Total Output Count | 4 count |
| Utilized IC / Part | LP876242-Q1 |
| Voltage - Input (Maximum) | 5.5 V |
| Voltage - Input (Minimum) | 2.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
