GSP2.9903.13

Active

SCHURTER Inc.

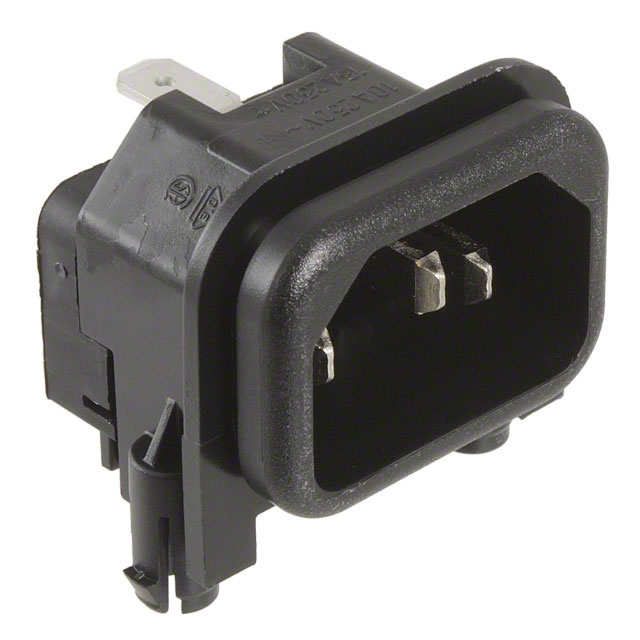

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	GSP2.9903.13

Accomodates a Fuse	False
Approval Agency	ENEC, CCC, cURus
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount, Snap-In
Panel Cutout Dimensions [x]	30.3 mm
Panel Cutout Dimensions [y]	22.5 mm
Panel Thickness [custom]	0.059 in
Panel Thickness [custom]	1.5 mm
Termination	Solder, Quick Connect - 0.189" (4.8mm)
Voltage Rating - Appliance Inlet	250 VAC

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Filter Type	Ingress Protection	Connector Style	Connector Type	Material Flammability Rating	Accomodates a Fuse	Current Rating - Appliance Inlet	Mounting Type	Voltage Rating - Appliance Inlet	Termination	Panel Thickness [custom]	Panel Thickness [custom]	Approval Agency	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
SCHURTER Inc. GSP2.9903.13	Unfiltered - Commercial	IP40	IEC 320-C14	Male Blades, Receptacle	UL94 V-0		10 A	Panel Mount, Snap-In, Through Hole, Right Angle	250 VAC	Solder, Quick Connect - 0.189" (4.8mm)	0.059 in	1.5 mm	CCC, cURus, ENEC	30.3 mm	22.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In; Through Hole, Right Angle
